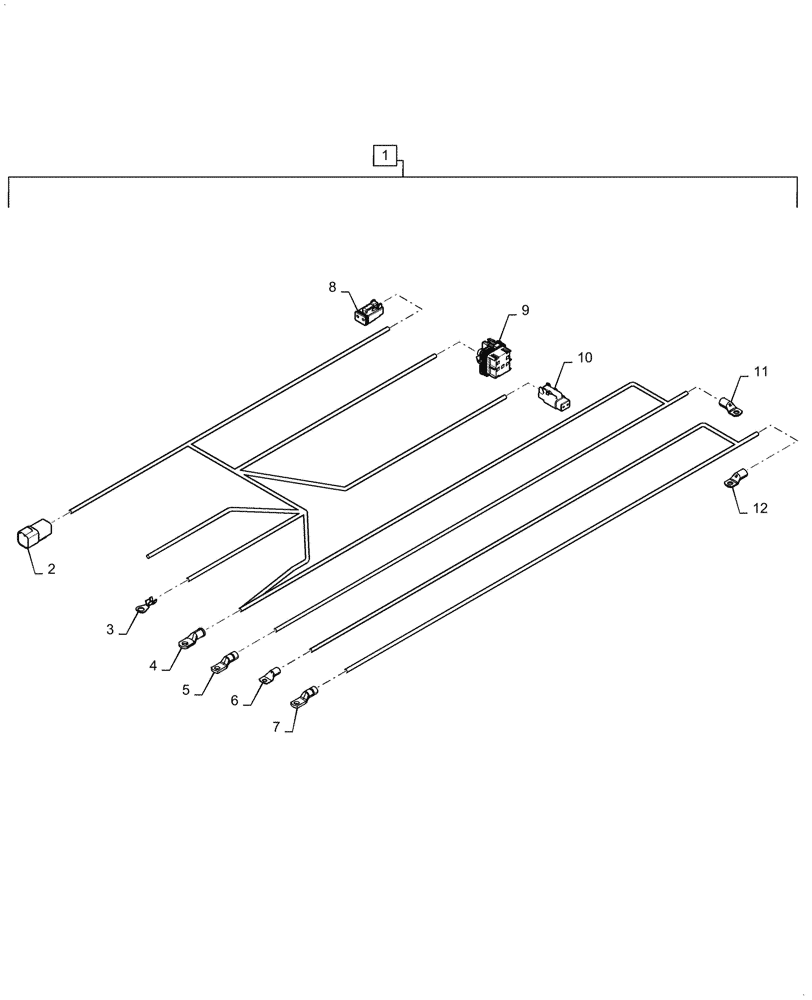

Запчасти Case IH 2150 (55.301.AA[07]) - ALTERNATOR HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

47843558

WIRE HARNESS

Alternator, Incl 2 - 12

1шт.

2

87695579

WIRE CONNECTOR

Alternator Control

1шт.

3

84127304

TERMINAL

Alternator Voltage

1шт.

4

84207853

ELEC CONNECTOR,25.00 - 35.00mm

Alternator Positive

1шт.

5

84138833

TERMINAL

PDM Positive

1шт.

6

84309053

TERMINAL

Alternator Negative

1шт.

7

84138833

TERMINAL

PDM Ground

1шт.

8

87711966

PLUG

Alternator Valve

1шт.

9

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

Excitation Relay

1шт.

10

87696093

ELEC CONNECTOR,Female, 2 Cavities

Excitation Resistor

1шт.

11

47629692

TERMINAL

Battery Positive

1шт.

12

47629692

TERMINAL

Battery Negative

1шт.
