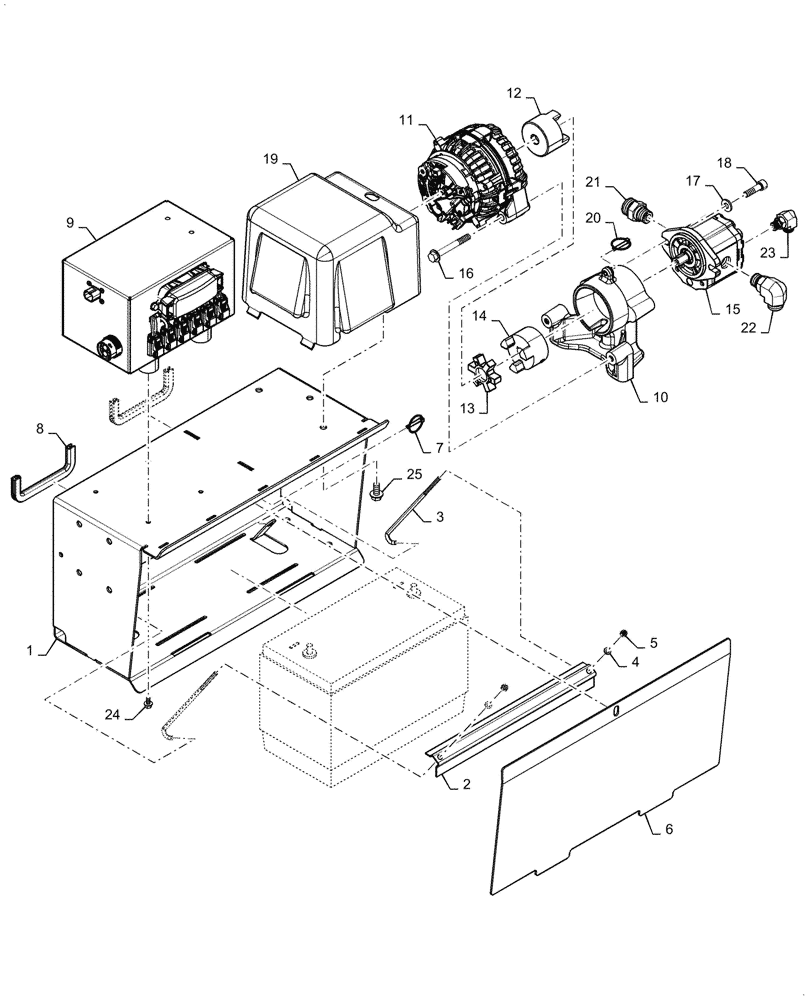

Запчасти Case IH 2150 (55.301.AA[05]) - ALTERNATOR AND BATTERY BOX, 24 ROW (55) - ELECTRICAL SYSTEMS

1

47762806

SUPPORT

PDM & Alternator, Red

1шт.

2

47689749

SUPPORT

Battery Hold Down, Grey

1шт.

3

86524904

BOLT

Battery Hold Down

2шт.

4

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

5

353308

NUT,M6 x 1.0, Cl 8

2шт.

6

47762809

COVER

Battery Access, Red

1шт.

7

86508947

LINCH PIN,18.8mm OD

1шт.

8

135370A1

PROTECTION STRIP

Trim Edge, 7.6"

2шт.

9

47714576

MODULE

Power Distribution

1шт.

10

47805839

SUPPORT

Alternator, Red

1шт.

11

84474354

ALTERNATOR,12V, 200A

1шт.

12

47687299

COUPLING

Alternator

1шт.

13

47687305

HYD CONNECTOR

1шт.

14

47699703

COUPLING

1шт.

15

47779182

HYDRAULIC MOTOR

1шт.

16

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

2шт.

17

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

2шт.

18

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

2шт.

19

47805834

SHIELD

Alternator

1шт.

20

86508947

LINCH PIN,18.8mm OD

1шт.

21

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

22

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

23

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

24

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

4шт.

25

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

3шт.
