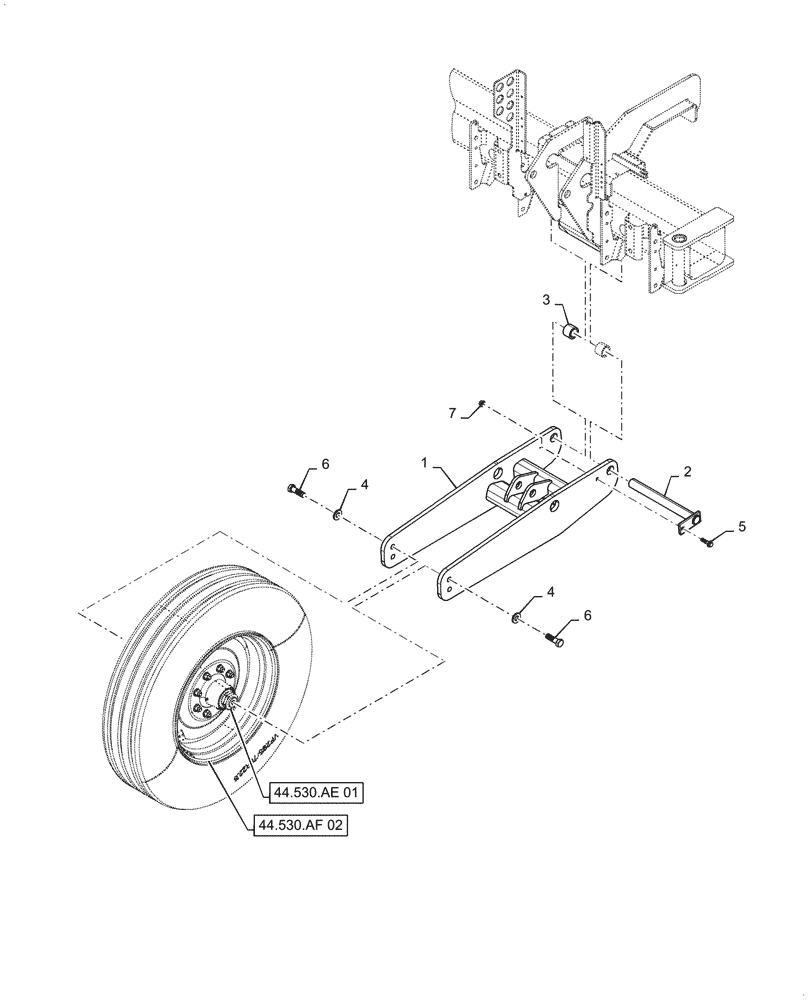

Запчасти Case IH 2150 (44.530.AF[04]) - WING WHEEL MOUNTING (44) - WHEELS

1

47764602

FRAME

Wing Wheel Red

4шт.

2

87503050

PIN

Wing Wheel Pivot

4шт.

3

87503066

BUSHING,38.29mm ID x 50.93mm OD x 37.35mm L

8шт.

4

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

8шт.

5

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

4шт.

6

86639154

BOLT,Hex, M20 x 65mm, Cl 10.9

8шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.
