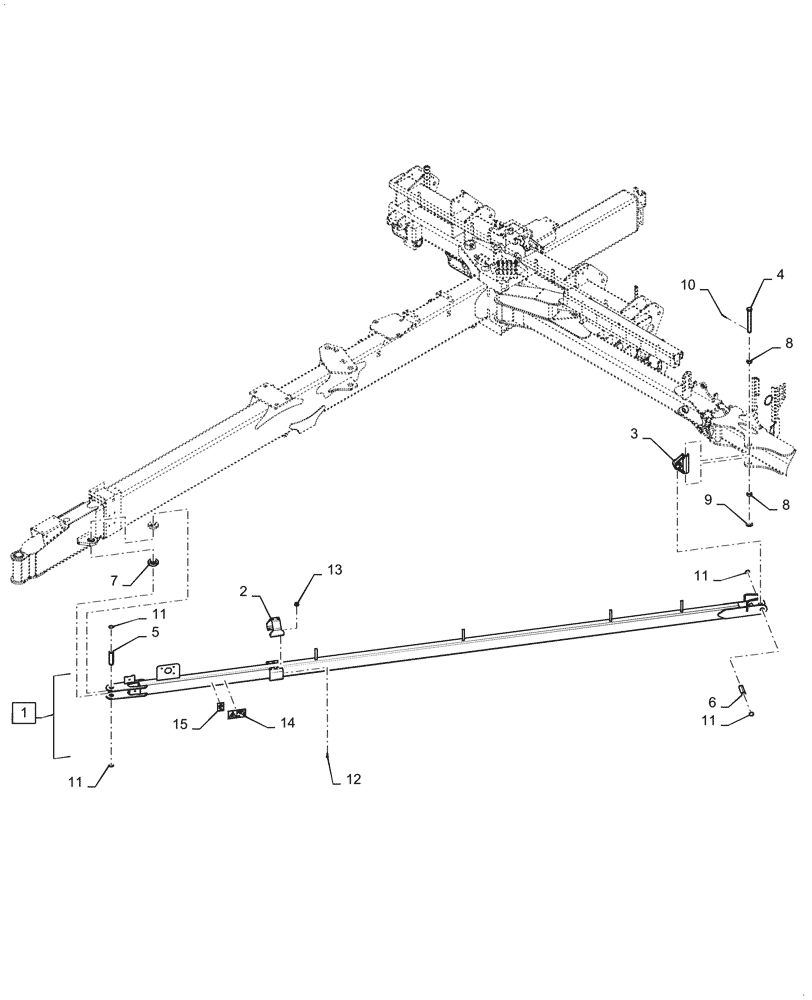

Запчасти Case IH 2150 (37.120.AO[02]) - DRAFT TUBES LEFT, 24 ROW (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47943997

BEAM

Draft Tubes Left 24 Row Incl Decals Incl 14-15

1шт.

2

47919107

CHANNEL

Warning Pinch Hazard

1шт.

3

47793678

KNUCKLE

1шт.

4

539-208

HEADED PIN,1 1/4" x 8 3/4"

1шт.

5

87708908

PIN

39.9 x 131mm

1шт.

6

87725629

PIN

38.1 x 110mm

1шт.

7

87671027

BUSHING

95.3 x 41 x 20 mm

2шт.

8

1268053C1

BUSHING,38.1mm ID x 44.45mm OD x 19.05mm L

2шт.

9

87023158

WASHER,1.31" ID x 2.5" OD x 0.15" Thk

1шт.

10

88182

COTTER PIN,1/4" OD x 2" L

1шт.

11

86632531

SNAP RING,#150, Ext

4шт.

12

87682393

CARRIAGE BOLT,M10 x 1.5 x 35mm, Cl 10.9

4шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

14

47433192

DECAL

Pinch Hazard

1шт.

15

47433182

DECAL

Chemical hazard

1шт.
