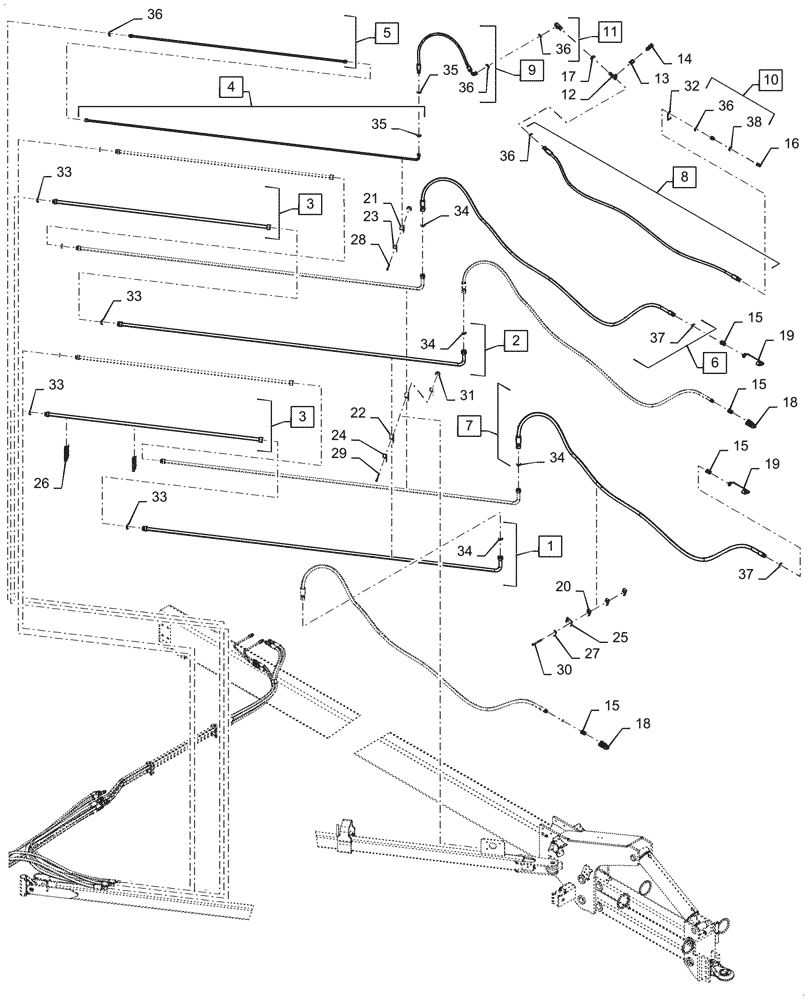

Запчасти Case IH 2150 (35.100.BI[26]) - HYDRAULIC REMOTE LINES RIGHT, 24 ROW (35) - HYDRAULIC SYSTEMS

1

84532902

HYD TUBE

Draft Tube, 3500mm L, Incl 33, 34

2шт.

2

47788919

TUBE

Draft Tube, 3391mm L, Incl 33, 34

2шт.

3

47786299

HYD TUBE

Draft Tube, 2022mm L, Incl 34

4шт.

4

47789845

HYD TUBE

Draft Tube, Case Drain, 3174mm L, Incl 35

1шт.

5

47803727

HYD TUBE

Draft Tube, Case Drain, 2041mm L, Incl 36

1шт.

6

47820273

HYDRAULIC HOSE

3900mm L, Incl 34, 37

2шт.

7

47820274

HYDRAULIC HOSE

3900mm L, Incl 34, 37

2шт.

8

47820277

HYDRAULIC HOSE

2990mm L, Incl 36

1шт.

9

47842339

HYDRAULIC HOSE

1015mm L, Incl 35, 36

1шт.

10

9992342

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

Incl 36, 38

1шт.

11

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Incl 36

1шт.

12

47825113

UNION TEE

1шт.

13

47745911

ADAPTER

1шт.

14

47386260

PRESSURE SWITCH

12 Bar

1шт.

15

86592080

QUICK MALE COUPLING

4шт.

16

86592082

QUICK MALE COUPLING

1шт.

17

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

1шт.

18

333719A1

CAP

Quick Coupler, Yellow

2шт.

19

333721A1

CAP

Quick Coupler, Red

2шт.

20

87482623

CLAMP

6шт.

21

87000149

CLAMP

12.7mm x 12.7mm

1шт.

22

87000152

CLAMP,25.4mm D Clamping Pipes x 2

4шт.

23

87000230

PLATE

1шт.

24

1186005

PLATE

4шт.

25

47895228

COVER

1шт.

26

47692514

SUPPORT

Hydraulic Tube

4шт.

27

87530629

CLAMP,20.6mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

28

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

29

16045521

SCREW,Hex, M8 x 115, 8.8

2шт.

30

47919372

BOLT

m10 x 110mm

2шт.

31

68841

NUT,M8 x 1.25, Cl 8

3шт.

32

47432848

DECAL

Tag Case Drain

1шт.

33

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

34

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

35

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

36

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

37

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

38

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
