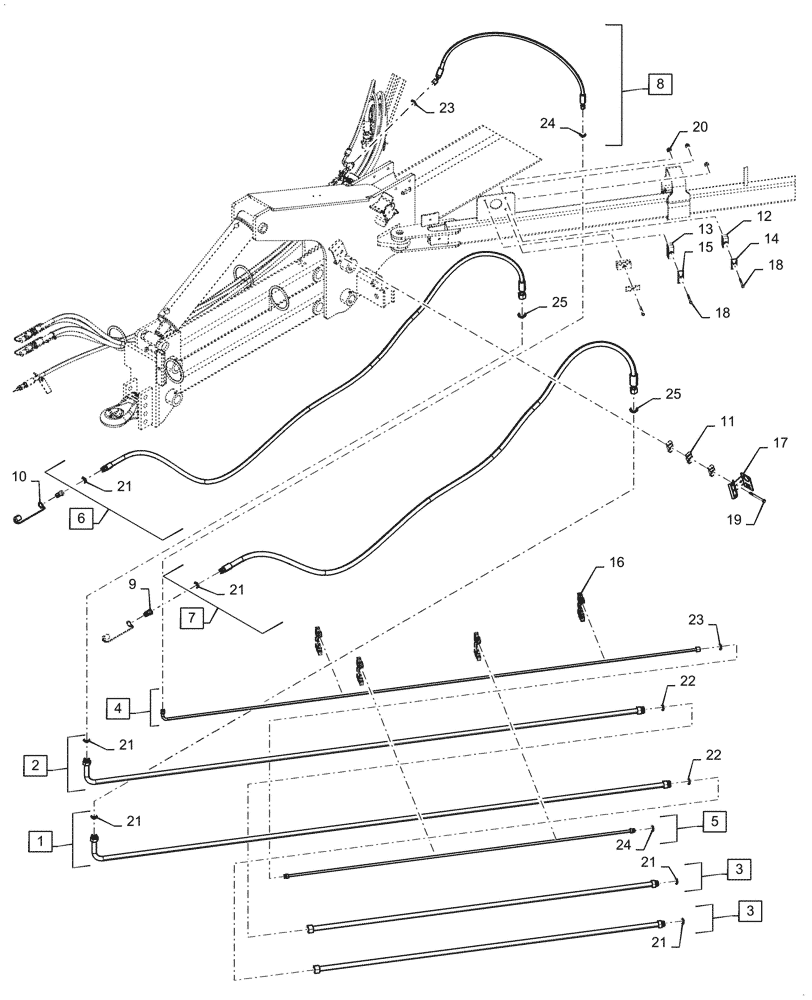

Запчасти Case IH 2150 (35.100.BI[25]) - HYDRAULIC REMOTE LINES LEFT 24 ROW (35) - HYDRAULIC SYSTEMS

1

84532902

HYD TUBE

Draft Tube, 3500mm L, Incl 21, 22

1шт.

2

47788919

TUBE

Draft Tube, 3391mm L, Incl 21, 22

1шт.

3

47786299

HYD TUBE

Draft Tube, 2022mm L, Incl 21

2шт.

4

47789845

HYD TUBE

Draft Tube Case Drain, 3174mm L, Incl 23

1шт.

5

47803727

HYD TUBE

Draft Tube Case Drain, 2041mm L, Incl 24

1шт.

6

47820273

HYDRAULIC HOSE

3900mm L, Incl 21, 25

1шт.

7

47820274

HYDRAULIC HOSE

3900mm L, Incl 21, 25

1шт.

8

47820275

HYDRAULIC HOSE

1230mm L, Incl 23, 24

1шт.

9

86592080

QUICK MALE COUPLING

2шт.

10

333722A1

CAP

Green

2шт.

11

87482623

CLAMP

6шт.

12

87000149

CLAMP

12.7mm

1шт.

13

87000152

CLAMP,25.4mm D Clamping Pipes x 2

2шт.

14

87000230

PLATE

1шт.

15

1186005

PLATE

2шт.

16

47692514

SUPPORT

Hydraulic Tube

4шт.

17

47947173

BRACKET

Bulkhead Support, Red

1шт.

18

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

3шт.

19

47919372

BOLT

M10 x 110mm

2шт.

20

68841

NUT,M8 x 1.25, Cl 8

3шт.

21

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.

22

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

23

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

24

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.
