Запчасти Case IH 2150 (35.100.BI[23]) - HYDRAULIC WEIGHT MANAGEMENT, 24 ROW (35) - HYDRAULIC SYSTEMS

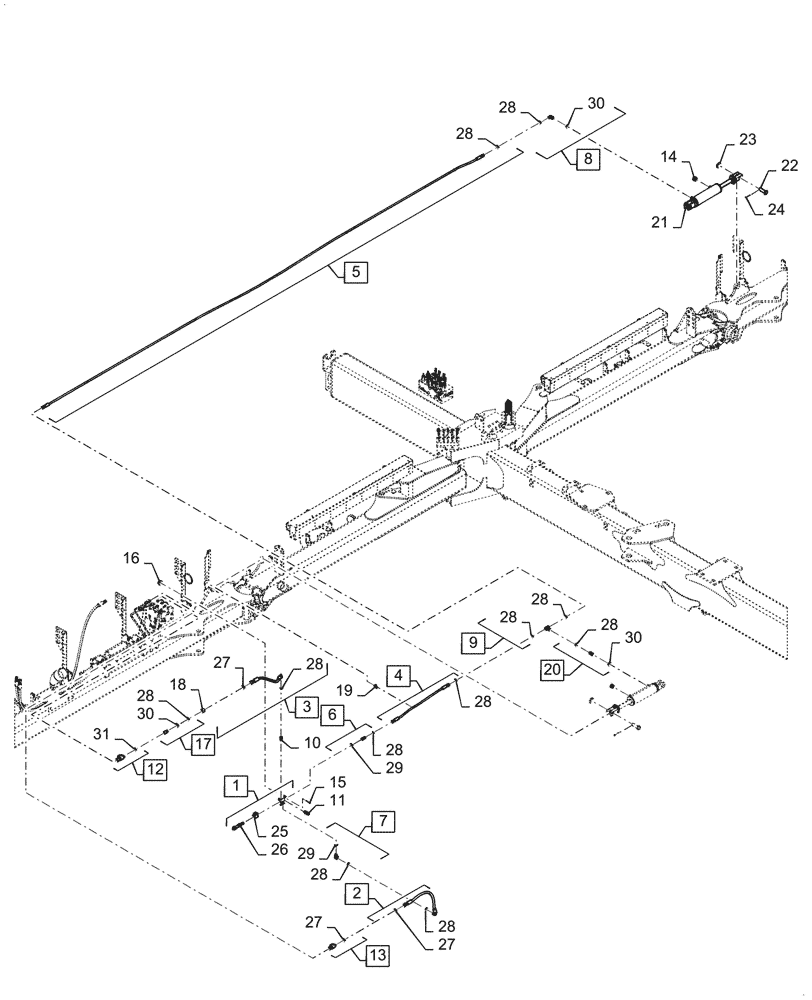

Схема запчастей Case IH 2150 - (35.100.BI[23]) - HYDRAULIC WEIGHT MANAGEMENT, 24 ROW (35) - HYDRAULIC SYSTEMS
11
13
15
27
7
28
26
28
22
27
28
28
31
27
14
30
28
28
29
30
28
16
5
10
29
6
8
18
9
28
28
21
30
24
12
23
1
4
2
20
3
17
28
28
25
19

Артикул

Название

Примечание

Количество

1

47666427

VALVE BODY

Incl 25,26

1шт.

2

47783419

HYDRAULIC HOSE

610mm L, Incl 27, 28

1шт.

3

47783420

HYDRAULIC HOSE

545mm L, Incl 27, 28

1шт.

4

47783421

HYDRAULIC HOSE

785mm L, Incl 28

1шт.

5

47783422

HYDRAULIC HOSE

6245mm L, Incl 28

1шт.

6

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 28, 29

1шт.

7

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Incl 28, 29

1шт.

8

84390792

90 ELBOW

Incl 28, 30

1шт.

9

84561113

BRANCH TEE

Incl 28

1шт.

10

277961A1

VALVE

1шт.

11

47773391

SENSOR

1шт.

12

86624133

TEE,1"-14 ORFS x 1"-14 Sw Run

Incl 31

1шт.

13

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Incl 27

1шт.

14

47773907

HYD CONNECTOR

2шт.

15

15212821

BOLT,Hex, M6 x 45mm, Cl 8.8, Full Thd

2шт.

16

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

17

84989629

HYD CONNECTOR,13/16" - 16 ORB x 1" ORFS

Incl 28, 30

1шт.

18

86624028

TUBE NUT,1"-14 ORFS

1шт.

19

82033028

CABLE TIE,170mm L

1шт.

20

87672176

HYD CONNECTOR

Incl 28, 30

1шт.

21

47525652

HYDRAULIC CYLINDER

2шт.

22

87023161

HEADED PIN,1" x 3"

4шт.

23

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

24

87041

COTTER PIN,1/4" x 1 3/4"

4шт.

25

47448438

COIL

1шт.

26

84300099

CARTRIDGE

1шт.

27

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

28

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

10шт.

29

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

30

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

31

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 31
