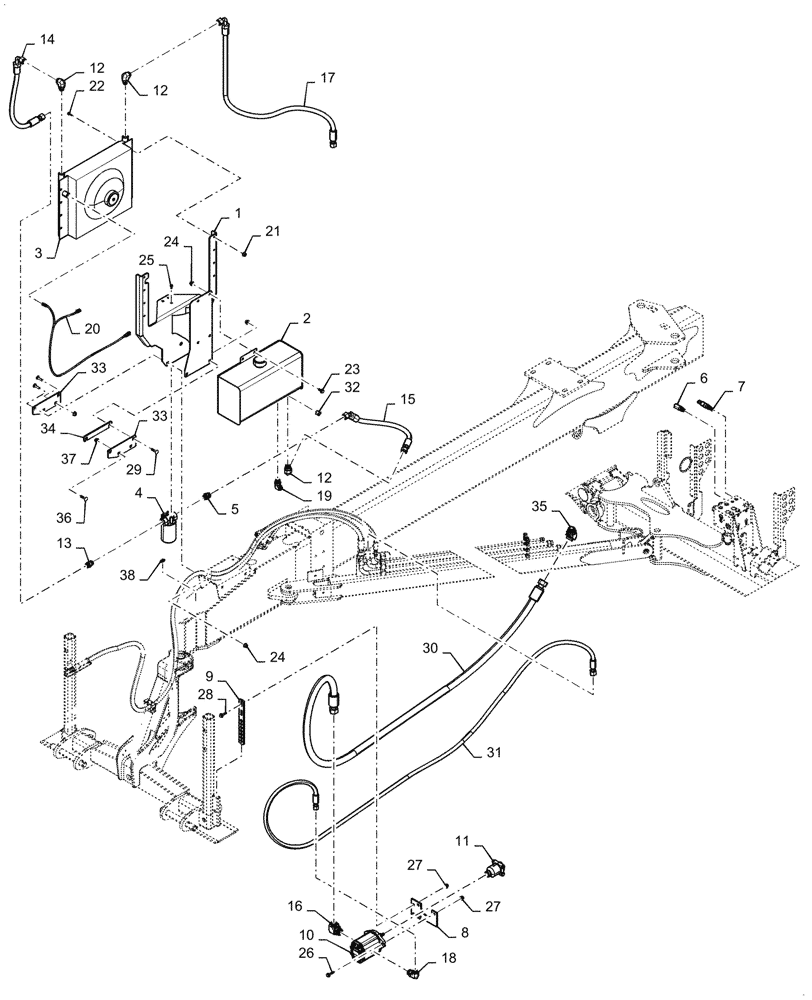

Запчасти Case IH 2150 (31.226.AA[01]) - PTO 22 GPM (31) - IMPLEMENT POWER TAKE OFF

1

47839670

MOUNT

Cooler, Red

1шт.

2

84526682

TANK

6.5 Gal

1шт.

3

87618983

COOLER ASSY.

Pusher

1шт.

4

87404509

FILTER ASSY

Fan Drive

1шт.

5

5198995

CHECK VALVE

1шт.

6

304419A1

VALVE PRESSURE RELIE

Relief

1шт.

7

304420A1

VALVE

Unloading

1шт.

8

437630A1

PLATE

Pump Mounting

1шт.

9

437631A1

BRACKET

Adjusting

1шт.

10

87619629

PUMP

PTO Drive

1шт.

11

1958268C1

COUPLING

1шт.

12

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

3шт.

13

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

14

47843543

HYDRAULIC HOSE

Filter

1шт.

15

47843548

HYDRAULIC HOSE

Tank

1шт.

16

87493308

HYD CONNECTOR,1-11/16-12 ORFS x M30 x 1-1/4 ORB

1шт.

17

47843820

HYDRAULIC HOSE

Hydraulic Return

1шт.

18

87376123

90 ELBOW

1шт.

19

87591918

90 ELBOW

1шт.

20

355955A1

HARNESS

Cooling

1шт.

21

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

22

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

23

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

4шт.

24

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

25

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

26

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

2шт.

27

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

4шт.

28

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

29

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

4шт.

30

47844099

HYDRAULIC HOSE

Suction

1шт.

31

47844117

HYDRAULIC HOSE

Pressure

1шт.

32

87331951

ORIFICE

1шт.

33

47850110

PLATE

2шт.

34

NSS

NOT SOLD SEPARAT

1шт.

35

86511206

ELBOW

1шт.

36

334966

CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

4шт.

37

9804279

FLANGE NUT,Hex, M12, Cl 8

4шт.

38

86566989

CABLE TIE,208mm L

1шт.
