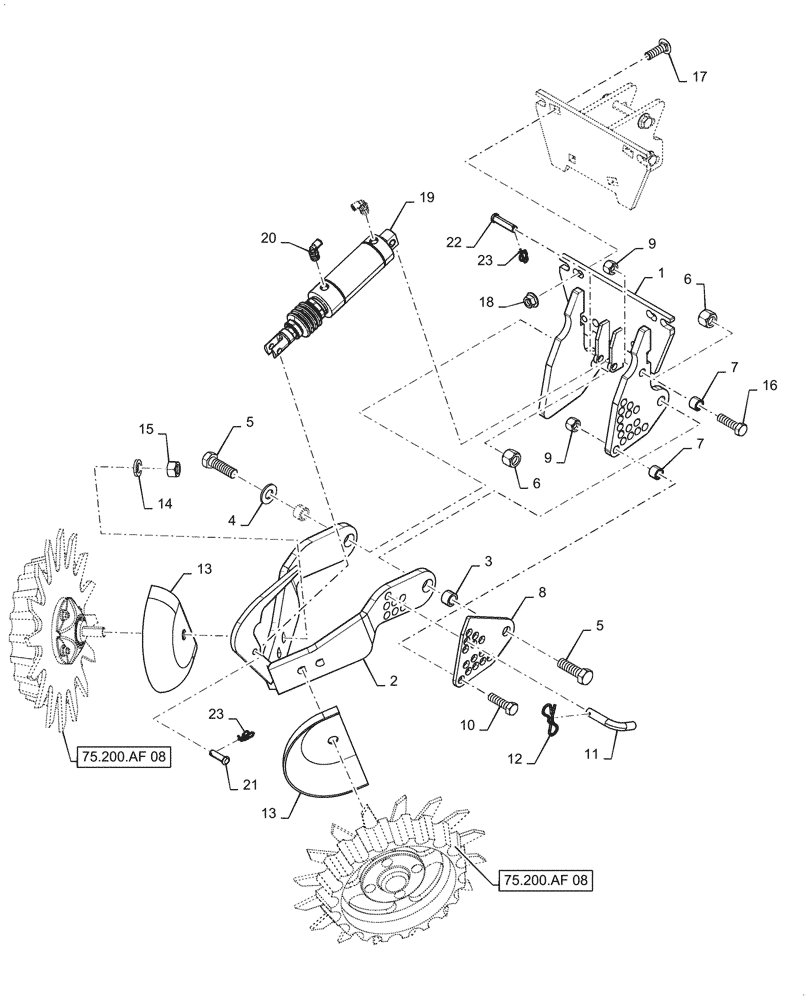

Запчасти Case IH 2150 (75.200.AF[09]) - FLOAT DEPTH BAND RESIDUE MANAGER WIDE TINE (75) - SOIL PREPARATION

1

47832834

MOUNT

Short Titan

1шт.

2

47832838

ARM

Wide

1шт.

3

319317A1

BUSHING,16mm ID x 22.35mm OD x 14.29mm L

2шт.

4

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

5

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

6

6395

LOCK NUT,5/8"-11, GB

2шт.

7

87505329

SPACER

9/16"

2шт.

8

84188627

PLATE

Secondary Adjustment

1шт.

9

87333862

NUT

1/2"

2шт.

10

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

11

87505323

PIVOT PIN,12.7mm OD

1шт.

12

87505324

COTTER PIN

Locking

1шт.

13

319179A1

SHIELD

Residue Manager

2шт.

14

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

15

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

16

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

17

87698852

CARRIAGE BOLT,M12 x 40mm, Cl 10.9

3шт.

18

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

3шт.

19

73368395

KIT

Cylinder

1шт.

20

73368510

FITTING

0.25 x 0.25 90 Deg

2шт.

21

86624079

HEADED PIN,3/8" x 1 1/4", G2

1шт.

22

47839810

PIN

7/16-x 1-3/4"

1шт.

23

47839153

CLIP

Locking

2шт.
