Запчасти Case IH 2150 (55.516.AO[02]) - WIRE HARNESS HYDRAULIC DOWN FORCE 24 ROW (55) - ELECTRICAL SYSTEMS

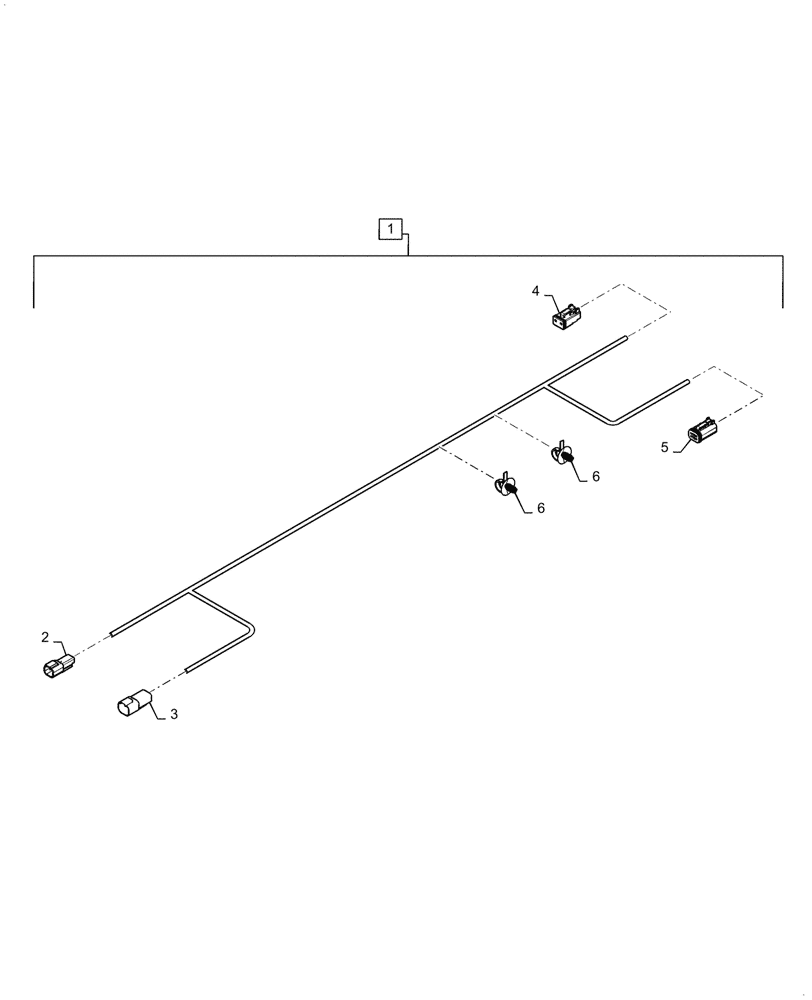

Схема запчастей Case IH 2150 - (55.516.AO[02]) - WIRE HARNESS HYDRAULIC DOWN FORCE 24 ROW (55) - ELECTRICAL SYSTEMS
6
5
4
3
6
2
1

Артикул

Название

Примечание

Количество

1

47842807

WIRE HARNESS

Hydraulic Down Force, Incl 2 - 5

1шт.

2

87696073

PLUG

PDM Delta Force Valve

1шт.

2

87695623

ELEC. TERMINAL PIN

2шт.

2

84322203

CLIP

Mounting Clip

1шт.

2

86500166

ELEC CONNECTOR

Wedge Lock

1шт.

3

87694102

ELEC CONNECTOR

PDM Delta Force Pressure

1шт.

3

87695623

ELEC. TERMINAL PIN

3шт.

3

84322203

CLIP

Mounting Clip

1шт.

3

87694145

ELEC CONNECTOR

Wedge Lock

1шт.

4

87711966

PLUG

Delta Force Valve

1шт.

4

87695623

ELEC. TERMINAL PIN

2шт.

4

87712180

ELEC CONNECTOR

Wedge Lock

1шт.

5

87694101

ELEC CONNECTOR,Female, 4 Cavities

Delta Force Pressure

1шт.

5

87695623

ELEC. TERMINAL PIN

3шт.

5

87694148

ELEC CONNECTOR

Wedge Lock

1шт.

6

82033028

CABLE TIE,170mm L

2шт.

Выбрано товаров: 16
