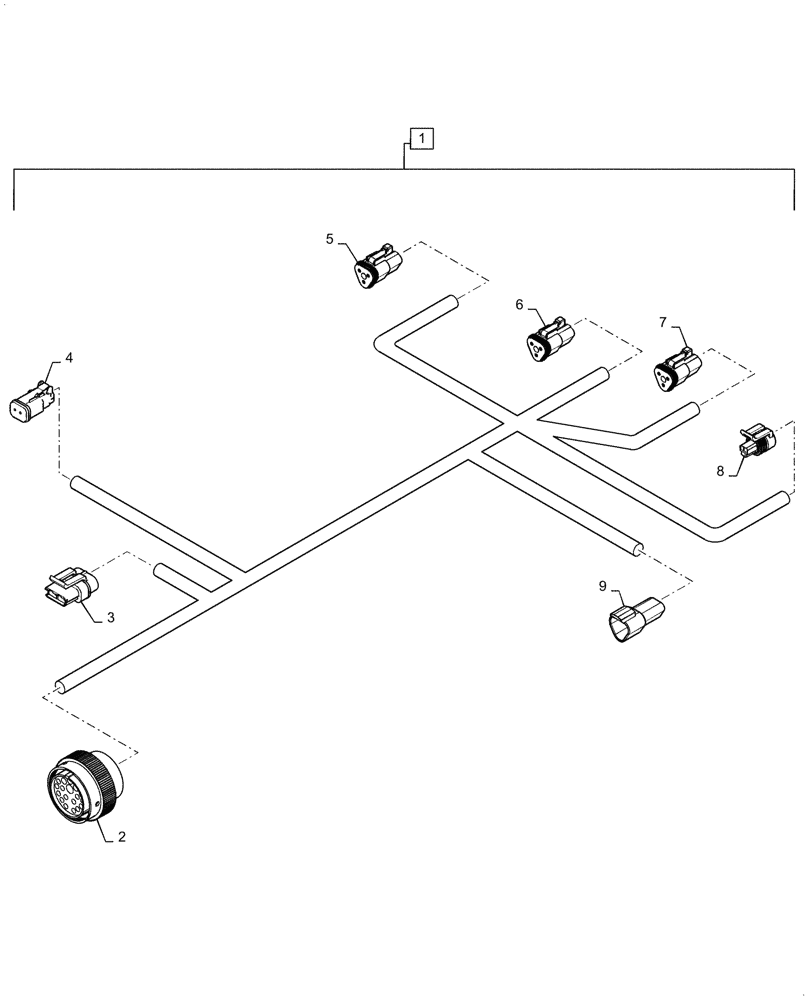

Запчасти Case IH 2150 (55.110.AB[02]) - LIQUID FERTILIZER SECTION HARNESS, 24 ROW 600 GALLON (55) - ELECTRICAL SYSTEMS

1

47933409

WIRE HARNESS

Liquid Fertilizer, Incl 2 - 9

1шт.

2

84178653

ELEC CONNECTOR

UCM - Liquid Fertilizer

1шт.

2

87704524

ELEC CONNECTOR,Pin, Size 12

Cavities 6, 7

2шт.

2

87695623

ELEC. TERMINAL PIN

Cavities 2 - 5, 9 - 11, 17, 18

9шт.

3

87688712

WIRE CONNECTOR,Female

Fuse

1шт.

3

87704524

ELEC CONNECTOR,Pin, Size 12

2шт.

3

87688863

CAP

1шт.

3

87693742

FUSE,5A

1шт.

4

87695582

ELEC CONNECTOR,Female, 2 Pole

Fertilizer Motor Valve

1шт.

4

87695623

ELEC. TERMINAL PIN

2шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

5

87695549

ELEC CONNECTOR,Female, 3 Cavities

Fertilizer Section 1

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

3шт.

5

84058193

LOCKING TAB,Wedge Lock

1шт.

6

87695549

ELEC CONNECTOR,Female, 3 Cavities

Fertilizer Section 2

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

3шт.

6

84058193

LOCKING TAB,Wedge Lock

1шт.

7

87695549

ELEC CONNECTOR,Female, 3 Cavities

Fertilizer Section 3

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

3шт.

7

84058193

LOCKING TAB,Wedge Lock

1шт.

8

84078681

WIRE CONNECTOR,Female

Fertilizer Pressure Transducer

1шт.

8

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

3шт.

9

87695548

TERMINAL CONNECTOR

Fertilizer Flow Meter

1шт.

9

87695623

ELEC. TERMINAL PIN

3шт.

9

87695625

WIRE CONNECTOR,Locking, Green

1шт.
