(55.015.AB[26]) - REAR HITCH WIRE HARNESS ASSEMBLY, 24 ROW

Запчасти Case IH 2150 (55.015.AB[26]) - REAR HITCH WIRE HARNESS ASSEMBLY, 24 ROW (55) - ELECTRICAL SYSTEMS

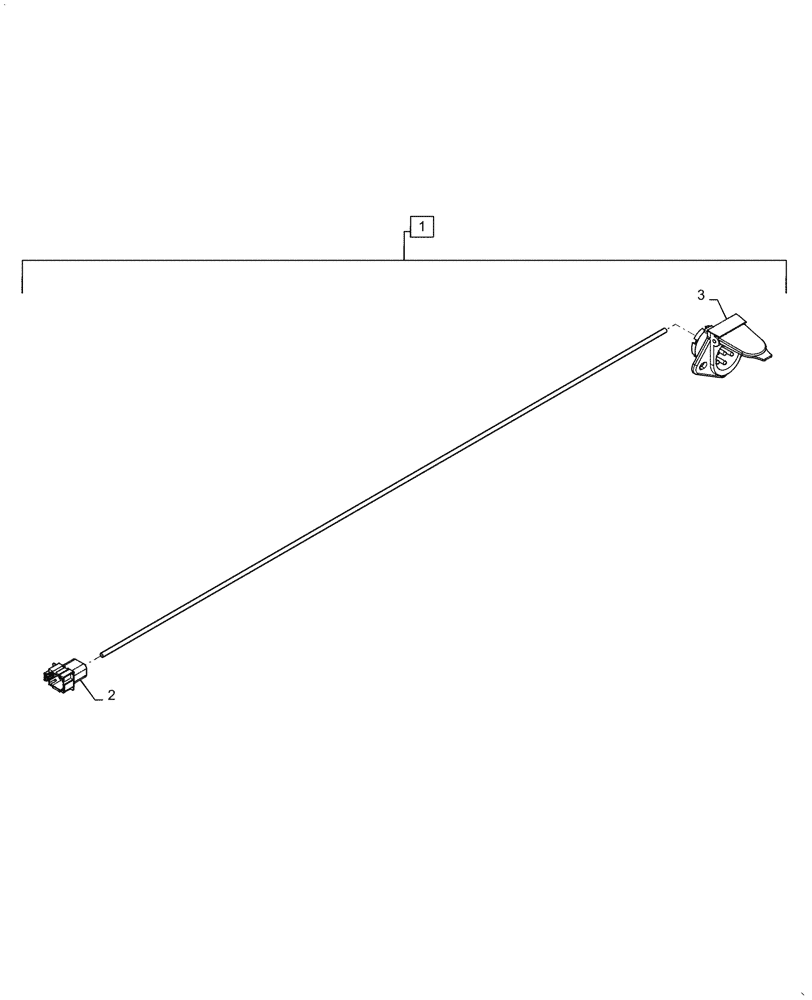

Схема запчастей Case IH 2150 - (55.015.AB[26]) - REAR HITCH WIRE HARNESS ASSEMBLY, 24 ROW (55) - ELECTRICAL SYSTEMS
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47807573

WIRE HARNESS

Rear Hitch 24 Row, Incl 2, 3

1шт.

2

87700321

ELEC CONNECTOR,Female, 8 Cavities

Planter Toolbar Connection

1шт.

2

87697956

TERMINAL

Male, 0.75 - 2.0mm

5шт.

2

84806919

PLUG,Wedge Lock

1шт.

3

82001021

POWER SOCKET,7 Pins

2nd Implement Connection

1шт.

3

87697956

TERMINAL

Male, 0.75 - 2.0mm

5шт.

3

84164764

BOOT

Protective Boot for 7 Pin Socket

1шт.
