Запчасти Case IH 2150 (55.015.AB[25]) - TOOLBAR WIRE HARNESS, 24 ROW (55) - ELECTRICAL SYSTEMS

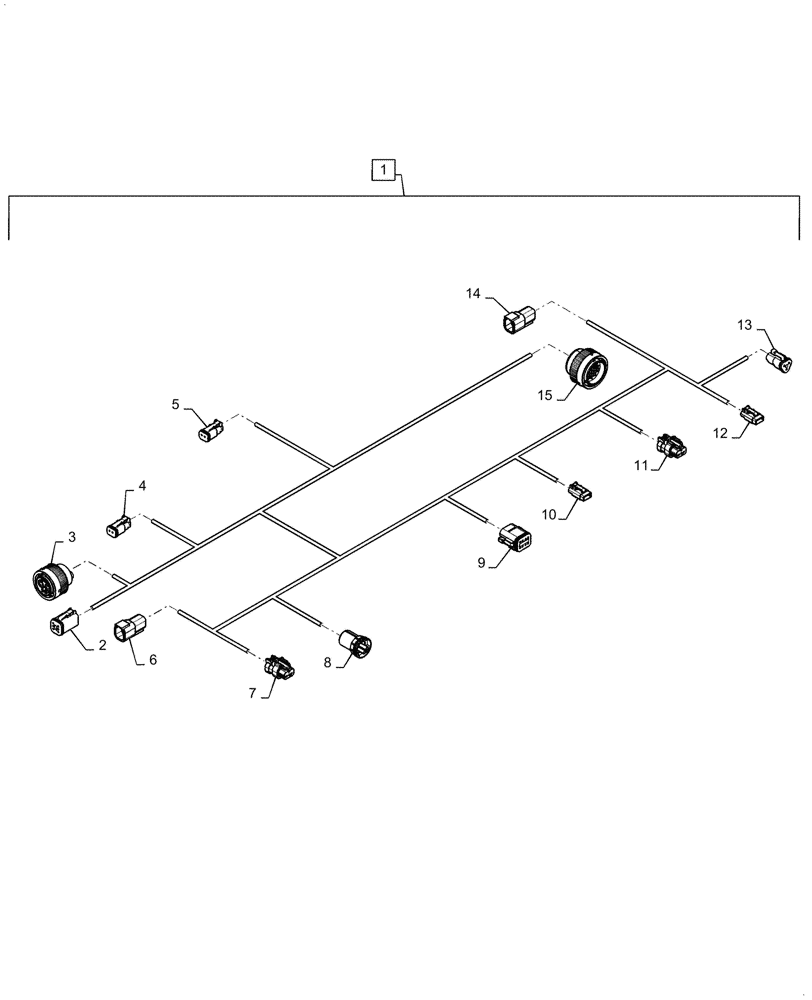

Схема запчастей Case IH 2150 - (55.015.AB[25]) - TOOLBAR WIRE HARNESS, 24 ROW (55) - ELECTRICAL SYSTEMS
15
3
1
11
5
6
12
4
13
8
7
9
14
10
2

Артикул

Название

Примечание

Количество

1

47705840

WIRE HARNESS

Toolbar Wire Harness 24 Row

1шт.

2

87694109

ELEC CONNECTOR

Alternator Control

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

6шт.

2

87694150

LOCKING TAB,Wedge Lock

Lock

1шт.

2

84391167

CAP

Plug

1шт.

3

47690530

WIRE CONNECTOR

PDM Power

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

1шт.

3

87716558

PLUG,Plug, Sealing

Sealing

1шт.

4

87695582

ELEC CONNECTOR,Female, 2 Pole

Vaccum Valve A

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

1шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

Vaccum Valve B

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

6

87700106

ELEC CONNECTOR

Left Warning Enhanced Tail

1шт.

6

87696141

TERMINAL

Nickel

6шт.

6

84807680

PLUG

Cavity

1шт.

6

87705583

ELEC CONNECTOR

Wedge Lock

1шт.

7

47685860

WIRE CONNECTOR

Vaccum Sensor A

1шт.

7

84278796

TERMINAL

Gold

1шт.

8

87706509

SOCKET/RECEPTACLE

Calibration Switch

1шт.

9

87695693

ELEC CONNECTOR

Lighting Extention

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

8шт.

9

84068583

PLUG,12 - 16 Ga, White

3шт.

9

87695638

STOP LOCK

Wedge

1шт.

10

87696551

CONTACT HOUSING,Female, 3 Pole

Left Wheel Speed

1шт.

10

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

1шт.

10

87705586

WEDGE

Lock

1шт.

11

47685860

WIRE CONNECTOR

Vaccum Sensor B

1шт.

11

84278796

TERMINAL

Gold

1шт.

12

87696551

CONTACT HOUSING,Female, 3 Pole

Right Wheel Speed

1шт.

12

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

1шт.

12

87705586

WEDGE

Lock

1шт.

13

87695580

ELEC CONNECTOR,Female, 3 Pole

Toolbar Position

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

1шт.

13

84074639

LOCKING TAB,Wedge Lock

Wedge Lock

1шт.

14

87700106

ELEC CONNECTOR

Right Warning Enhanced Tail

1шт.

14

87696141

TERMINAL

Nickle

6шт.

14

84807680

PLUG

Wedge Lock

1шт.

15

47599981

WIRE CONNECTOR

Toolbar Harness

1шт.

15

87696141

TERMINAL

Nickle

1шт.

15

87700175

ELEC CONNECTOR

Boot

1шт.

Выбрано товаров: 42
