Запчасти Case IH 2150 (55.015.AB[10]) - WIRE HARNESS 2 POINT HITCH EXTENSION (55) - ELECTRICAL SYSTEMS

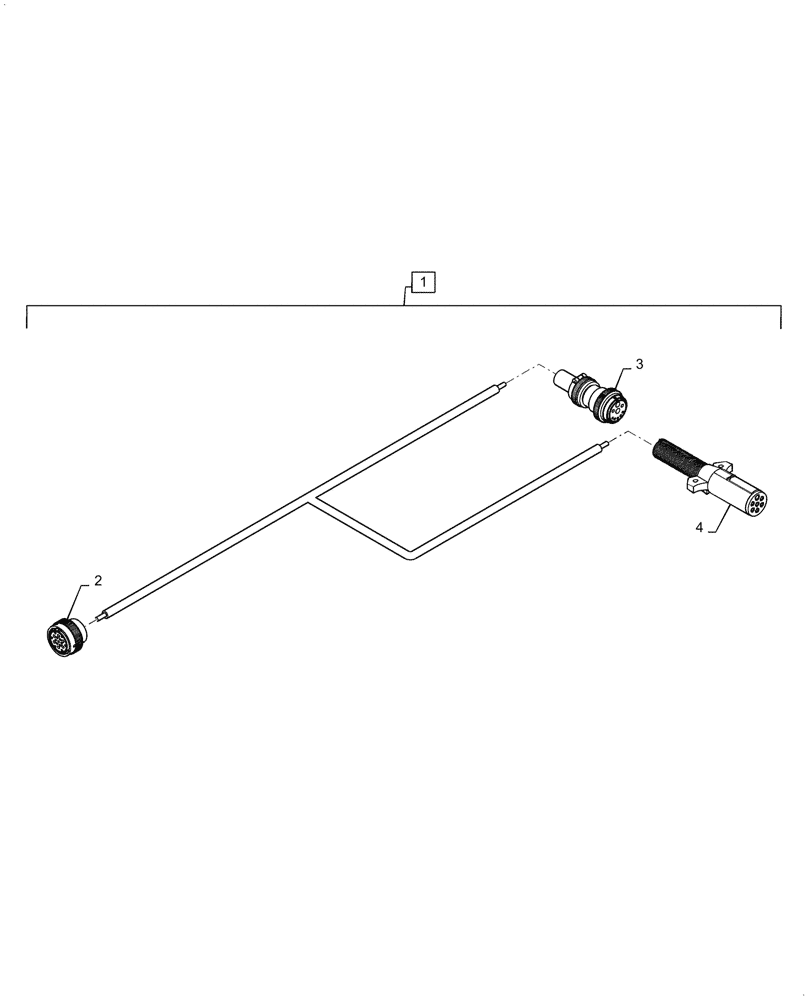

Схема запчастей Case IH 2150 - (55.015.AB[10]) - WIRE HARNESS 2 POINT HITCH EXTENSION (55) - ELECTRICAL SYSTEMS
2
3
1
4

Артикул

Название

Примечание

Количество

1

47684479

WIRE HARNESS

Extention 2 Point Hitch Incl 2-4

1шт.

2

87703940

ELEC CONNECTOR

Planter Bulkhead

1шт.

2

87697875

ELEC. TERMINAL PIN,Female, 2 - 3.6 mm2

6шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

13шт.

2

87700175

ELEC CONNECTOR

Shell

1шт.

2

84068583

PLUG,12 - 16 Ga, White

19шт.

3

87703855

MULTIPOLE CONNECTOR,Female, 9 Cavities

9 Way ISO Connector

1шт.

3

84819143

TERMINAL CONNECTOR,Female, 4.5 - 8 mm2

2шт.

3

87695923

TERMINAL

Female Tin

2шт.

3

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

5шт.

4

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

7 Way Lighting

1шт.

Выбрано товаров: 11
