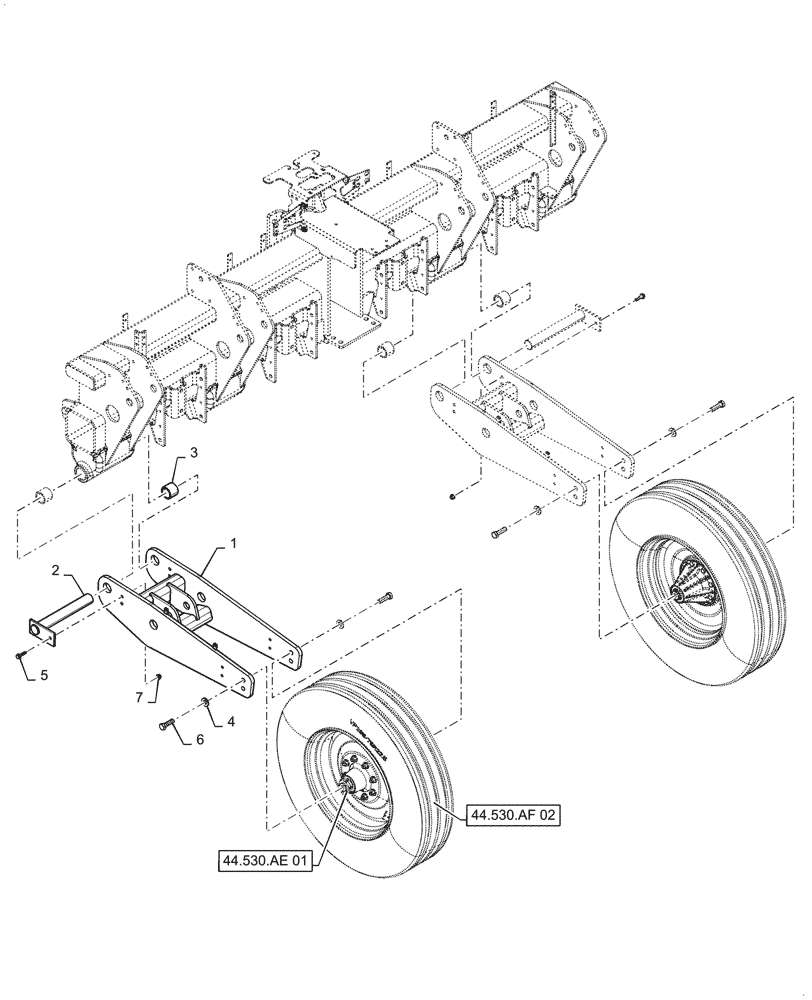

Запчасти Case IH 2150 (39.902.AB[11]) - CENTER WHEEL MOUNTING, 24 ROW (39) - FRAMES AND BALLASTING

1

47762083

FRAME

RH, Center Wheel

4шт.

2

87503053

PIN

Center Wheel Pivot

4шт.

3

87632788

BUSHING

Bushingy, Poly 2.5 OD x 2.0 ID

8шт.

4

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

8шт.

5

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

4шт.

6

86639154

BOLT,Hex, M20 x 65mm, Cl 10.9

8шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.
