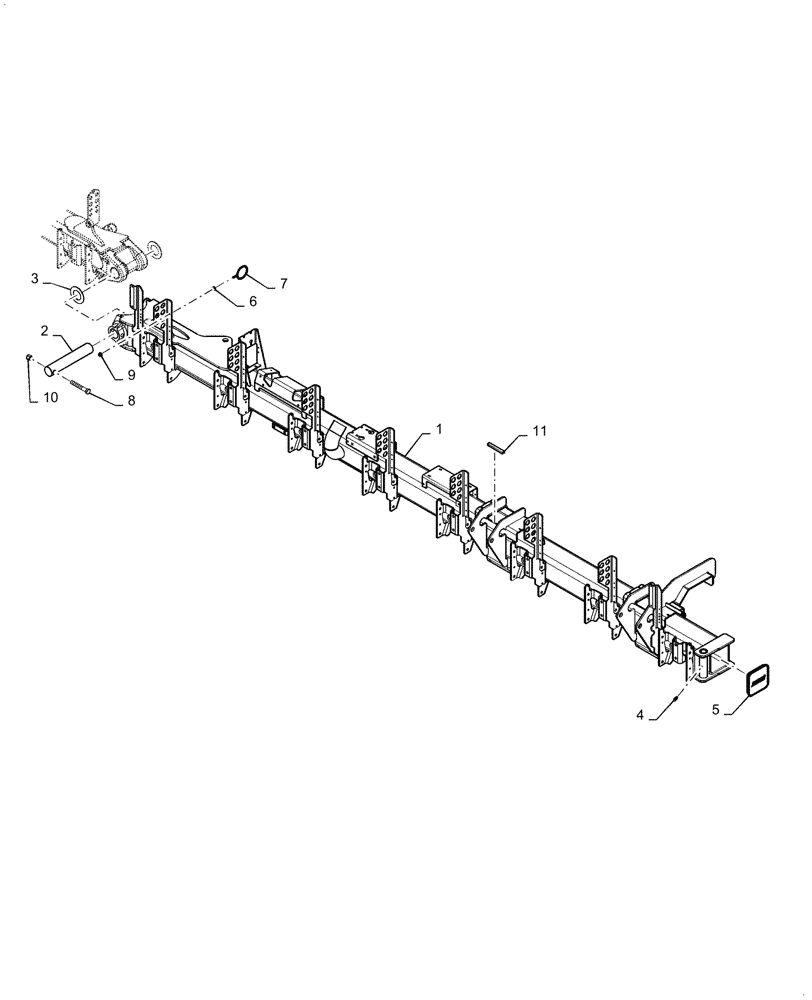

Запчасти Case IH 2150 (39.902.AB[09]) - OUTER WING RIGHT, 24 ROW (39) - FRAMES AND BALLASTING

1

47763919

FRAME

Outer Wing Right 24 Row

1шт.

2

47764789

PIN

Wing Pivot 76.2 x 425 mm

1шт.

3

47768423

WASHER

77.1 x 3.18mm

2шт.

4

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

5

47796513

PLUG

8"x 0.5"

1шт.

6

86624142

WASHER,0.34" ID x 0.75" OD x 0.12" Thk

1шт.

7

84251797

HOLDER

Hose 3.5" Dia

1шт.

8

86505748

BOLT,Hex, M24 x 3 x 160mm, Cl 10.9

1шт.

9

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

10

86536986

NUT,M24 x 3, Cl 10

1шт.

11

48091725

Bulk, Cut to Length 153mm

TRIM

1шт.
