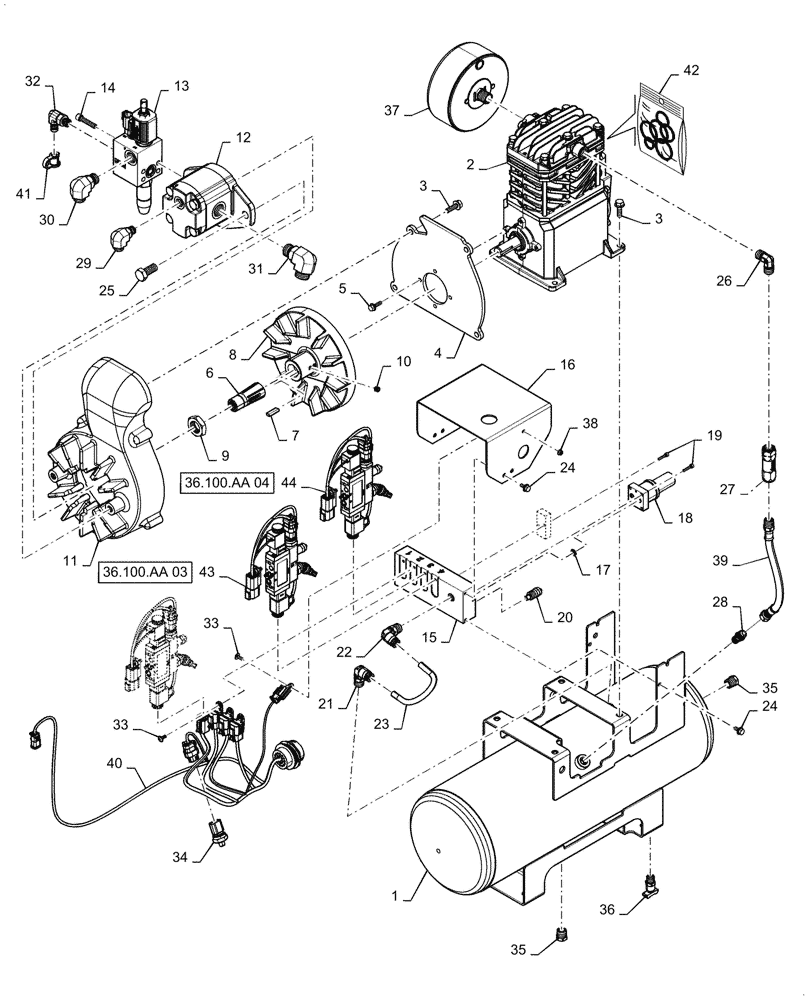

Запчасти Case IH 2150 (36.100.AA[02]) - DELUXE AIR COMPRESSOR (36) - PNEUMATIC SYSTEM

1

47815738

TANK

Air Compresor 5 Gallon

1шт.

2

47827314

AIR COMPRESSOR

Air Balanced

1шт.

3

47819063

BOLT

M8 x 25

8шт.

4

47713914

SUPPORT

Rear Fan

1шт.

5

47819061

BOLT

M6 x 20

4шт.

6

47902013

COLLET

Fly Wheel

1шт.

7

47902028

KEY

Fly Wheel

1шт.

8

47713936

FAN

Fly Wheel

1шт.

9

16103511

NUT,Hex, M24 x 1.5, Cl 8

M24

1шт.

10

13788921

SET SCREW,Hex Skt, M8 x 8mm, Cl 8.8, Full Thd, Cup Pt

2шт.

11

47713917

SUPPORT

Motor

1шт.

12

47821049

HYDRAULIC MOTOR

Compressor

1шт.

13

47825404

HYDRAULIC VALVE

4 GPM

1шт.

14

280702

HEX SOC SCREW,5/16 x 1-1/2"

4шт.

15

47823909

MANIFOLD

Air Valve

1шт.

16

47823910

SHIELD

Air Valve

1шт.

17

49886

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

2шт.

18

47823912

AIR COMPRESSOR

Regulator

1шт.

19

47819689

HEX SOC SCREW

M4

4шт.

20

47825869

VALVE PRESSURE RELIE

175 PSI

1шт.

21

47881599

90 ELBOW

3/8"

1шт.

22

47693435

90 ELBOW

3/8"

1шт.

23

47826337

PLASTIC-RUBBER TUBE

Air Compressor

1шт.

24

47819060

FLANGE BOLT,Hex, M6 x 1 x 12mm, Full Thd, Cl 8.8

8шт.

25

47819650

BOLT

M14 x 30

2шт.

26

47825394

90 ELBOW

3/8"

1шт.

27

47693436

CHECK VALVE

3/8"

1шт.

28

47825094

HYD CONNECTOR

3/8"

1шт.

29

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

30

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

1шт.

31

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

7/8"

1шт.

32

47826345

DIAGNOSTIC COUPLER

90 Deg 1/8"

1шт.

33

1983571

HEX SOC SCREW,M5 x 12mm, Cl 10.9

M5

1шт.

34

47748767

TRANSDUCER

0 - 150 PSI

1шт.

35

47847777

PIPE PLUG

3/8"

2шт.

36

47876485

DRAINCOCK/TAP SUPPLY

1/4"

1шт.

37

47819562

FILTER

Air

1шт.

38

14084111

LOCK NUT,M5 x .8, Flg

1шт.

39

47821478

HOSE

Steel Braid

1шт.

40

47825878

WIRE HARNESS

Main Compresor

1шт.

41

86502604

DUST CAP

Diag Port

1шт.

42

48108896

For Air compresor #2

SEAL KIT

1шт.

43

NSS

NOT SOLD SEPARAT

135 PSI Pressure Relief Valve, Follow Figure Link to 36.100.AA [03]

1шт.

44

NSS

NOT SOLD SEPARAT

80 PSI Pressure Reilief Valve, Follow Figure Link to 36.100.AA [04]

1шт.
