(35.744.AH[05]) - BULK FILL HYDRAULIC HOSES

Запчасти Case IH 2150 (35.744.AH[05]) - BULK FILL HYDRAULIC HOSES (35) - HYDRAULIC SYSTEMS

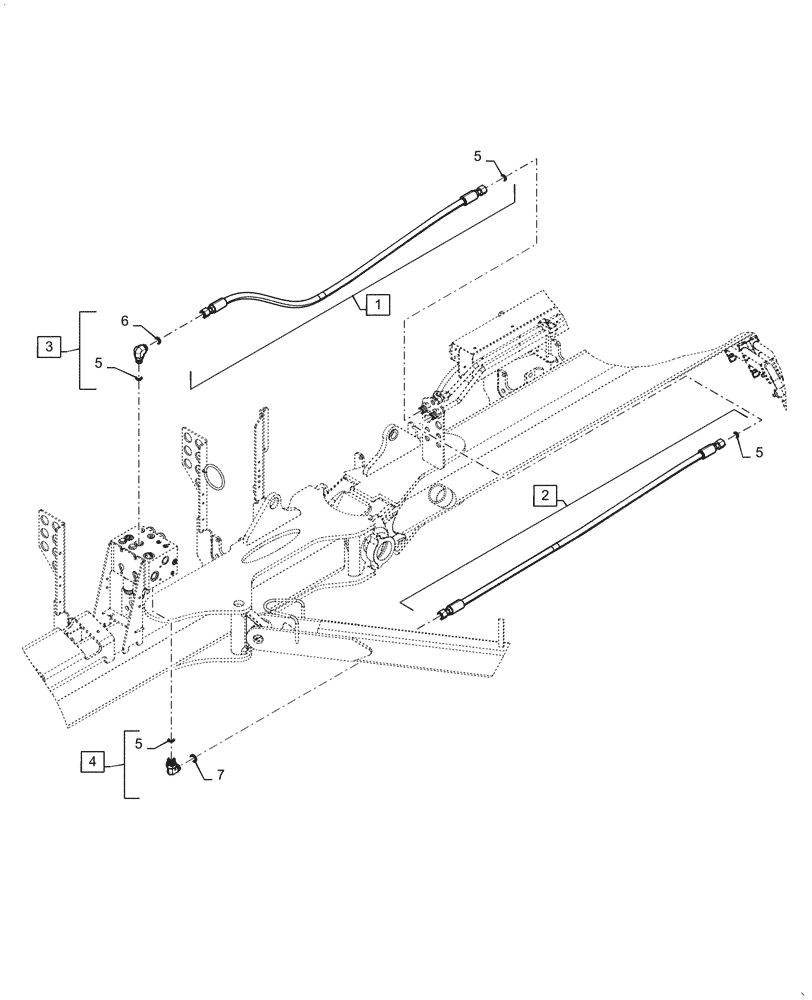

Схема запчастей Case IH 2150 - (35.744.AH[05]) - BULK FILL HYDRAULIC HOSES (35) - HYDRAULIC SYSTEMS
2
5
3
7
6
1
5
5
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47795893

HYDRAULIC HOSE

1605mm L, Incl 5

1шт.

2

47795897

HYDRAULIC HOSE

1580mm L, Incl 5

1шт.

3

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

Incl 5, 6

1шт.

4

9991973

ELBOW,1-14" ORFS x 1-1/16"-12 ORB

Incl 5, 7

1шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

6

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

Выбрано товаров: 7
