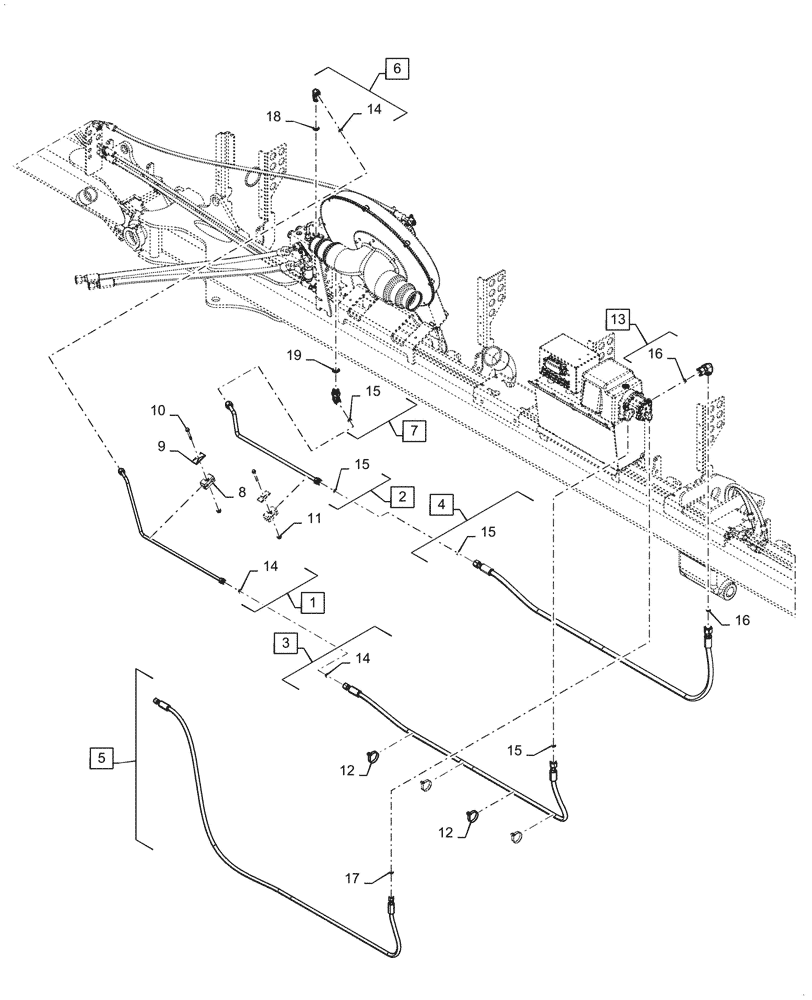

Запчасти Case IH 2150 (35.744.AF[02]) - ALTERNATOR HYDRAULIC HOSES, 24 ROW (35) - HYDRAULIC SYSTEMS

1

47919617

TUBE

Alternator Supply, 932mm L, Incl 14

1шт.

2

47919619

TUBE

Alternator Return, 761mm L, Incl 15

1шт.

3

47797927

HYDRAULIC HOSE

1890mm L, Incl 14, 15

1шт.

4

47797928

HYDRAULIC HOSE

1900mm L, Incl 15, 16

1шт.

5

47803806

HYDRAULIC HOSE

Alternator Case Drain, 2455mm L, Incl 17

1шт.

6

85802961

ELBOW,13/16"-16 UN-2A x 7/8"-14 UNF-2A

Incl 14, 18

1шт.

7

9991973

ELBOW,1-14" ORFS x 1-1/16"-12 ORB

Incl 15, 19

1шт.

8

87000139

CLAMP

2шт.

9

87000230

PLATE

2шт.

10

87656138

BOLT,M8 x 78.1mm, Cl 10.9

2шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

12

84360212

CABLE TIE,294.2mm L, Nylon

4шт.

13

201-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl 16

1шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

16

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
