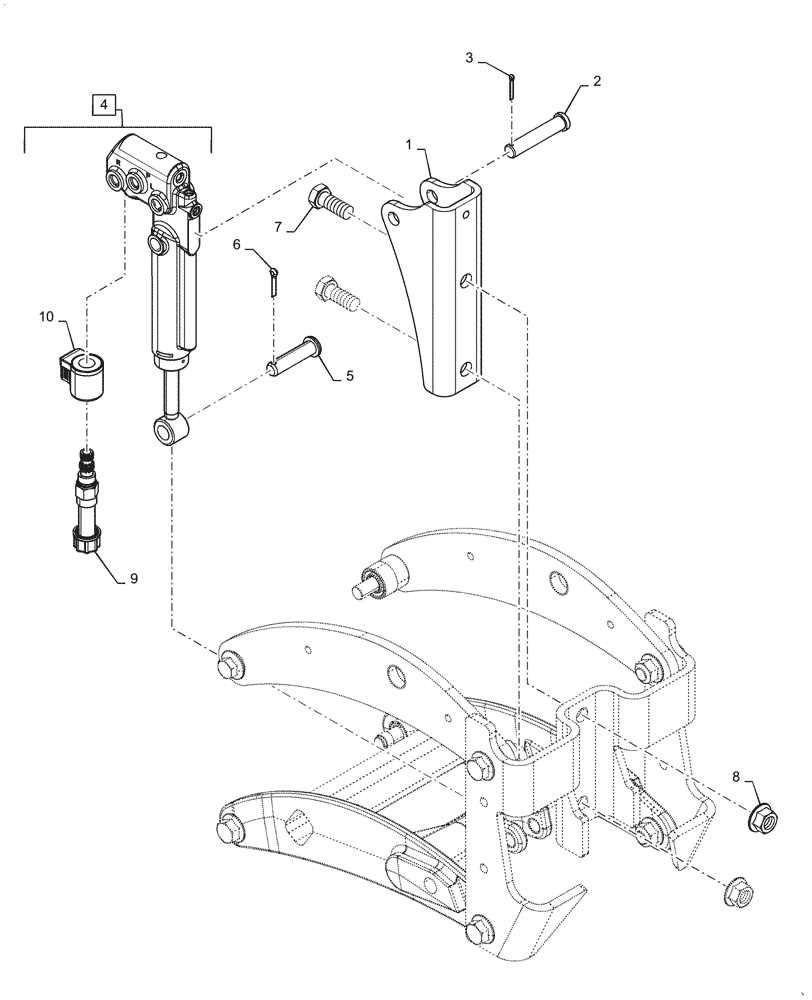

Запчасти Case IH 2150 (35.744.AD[04]) - ROW UNIT HYDRAULIC DOWN PRESSURE (35) - HYDRAULIC SYSTEMS

1

47795767

BRACKET

Row Unit Hydraulic Down Pressure Red

1шт.

2

87699214

CLEVIS PIN

.625 x 3.156"

1шт.

3

80755

COTTER PIN,1/8" OD x 1" L

1шт.

4

47870189

HYDRAULIC CYLINDER

Row Unit Incl 9-10

1шт.

5

47820373

PIN

5/8" Headed

1шт.

6

87397

COTTER PIN,3/16" OD x 1" L

1шт.

7

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

8

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

9

73368547

VALVE

1шт.

10

73368546

VALVE

Solenoid

1шт.
