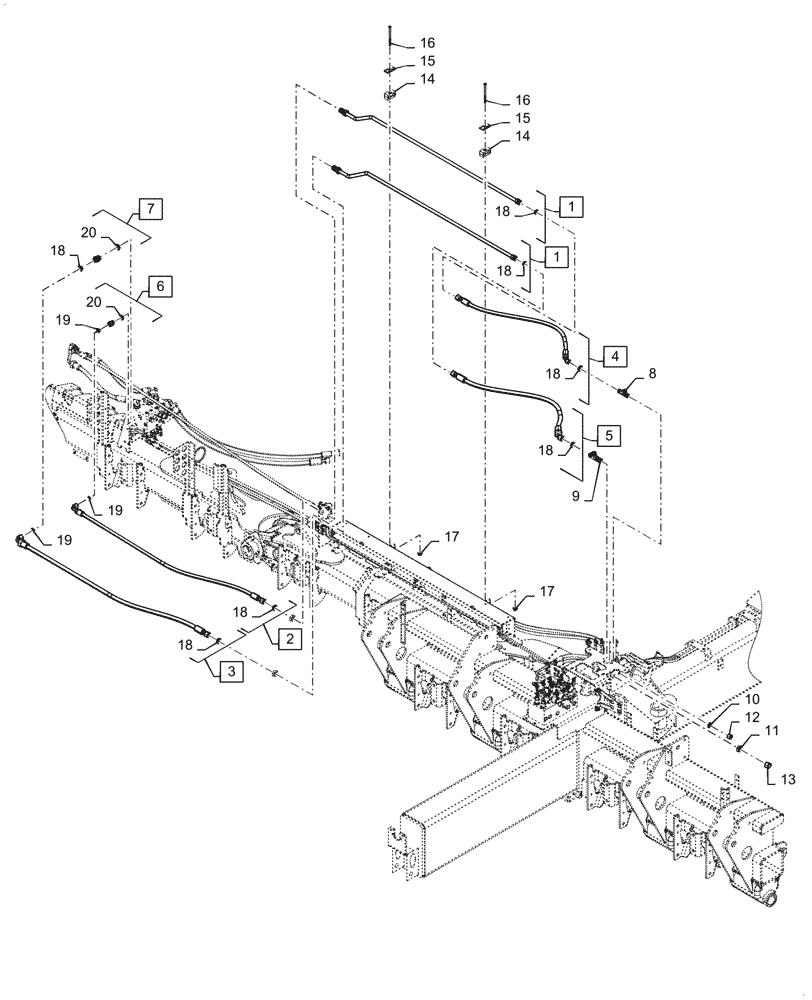

Запчасти Case IH 2150 (35.100.BI[24]) - FERTILIZER HYDRAULICS, W/O DELTA FORCE (35) - HYDRAULIC SYSTEMS

1

47918955

HYD TUBE

1626mm L, Incl 18

2шт.

2

47797954

HYDRAULIC HOSE

1605mm L, Incl 18, 19

1шт.

3

47797955

HYDRAULIC HOSE

1145mm L, Incl 18, 19

1шт.

4

47797956

HYDRAULIC HOSE

1165mm L, Incl 18

1шт.

5

47797957

HYDRAULIC HOSE

1625mm L, Incl 18

1шт.

6

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

Incl 19, 20

1шт.

7

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

Incl 18, 20

1шт.

8

86639080

TEE,13/16"-16 ORFS, Blkd Run

1шт.

9

86639081

TEE,1"-14 ORFS, Bulkhead

1шт.

10

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

1шт.

11

86639085

BHD LOCK NUT,1"-14, Bulkhead

3шт.

12

9840575

CAP,13/16" - 16 ORFS

1шт.

13

9840576

CAP,1" - 14 ORFS

1шт.

14

87000140

CLAMP,Tube, 19.05mm

2шт.

15

87000230

PLATE

2шт.

16

300807

BOLT,Hex, M8 x 140, 8.8

2шт.

17

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

9шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

20

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.
