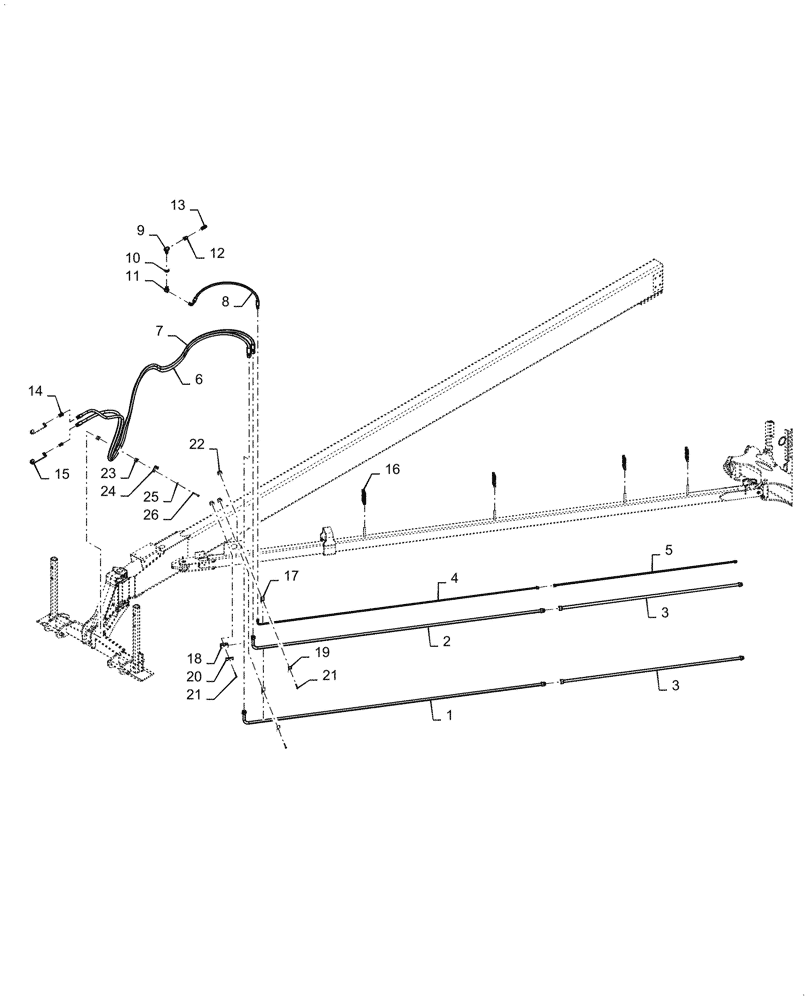

Запчасти Case IH 2150 (35.100.BI[21]) - HYDRAULIC REMOTE LINES LEFT, 24 ROW (35) - HYDRAULIC SYSTEMS

1

84532902

HYD TUBE

Draft

1шт.

2

47788919

TUBE

Draft

1шт.

3

47786299

HYD TUBE

Draft Tube

2шт.

4

47789845

HYD TUBE

Case Drain

1шт.

5

47803727

HYD TUBE

Case Drain

1шт.

6

47799814

HYDRAULIC HOSE

19mm ID x 4290mm Long

1шт.

7

47800008

HYDRAULIC HOSE

16mm ID x 4290mm Long

1шт.

8

47842339

HYDRAULIC HOSE

10mm ID x 1015mm Long

1шт.

9

86639082

TEE,13/16"-16 ORFS, Blkhd Br

1шт.

10

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

1шт.

11

84431325

TEE,13/16"-16 ORFS x 13/16"-16 Fem Sw Br

1шт.

12

47745911

ADAPTER

13/16"-16

1шт.

13

47386260

PRESSURE SWITCH

Pressure

1шт.

14

86592080

QUICK MALE COUPLING

2шт.

15

333722A1

CAP

Green

2шт.

16

47692514

SUPPORT

Hydraulic Tube

4шт.

17

87000149

CLAMP

12.7 x 12.7"

1шт.

18

87000152

CLAMP,25.4mm D Clamping Pipes x 2

2шт.

19

87000230

PLATE

Cover

1шт.

20

1186005

PLATE

Cover

2шт.

21

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

3шт.

22

68841

NUT,M8 x 1.25, Cl 8

3шт.

23

87482623

CLAMP

Large

4шт.

24

47895228

COVER

Plate Twin

1шт.

25

87530629

CLAMP,20.6mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

26

47919371

BOLT

M10 x 80

2шт.
