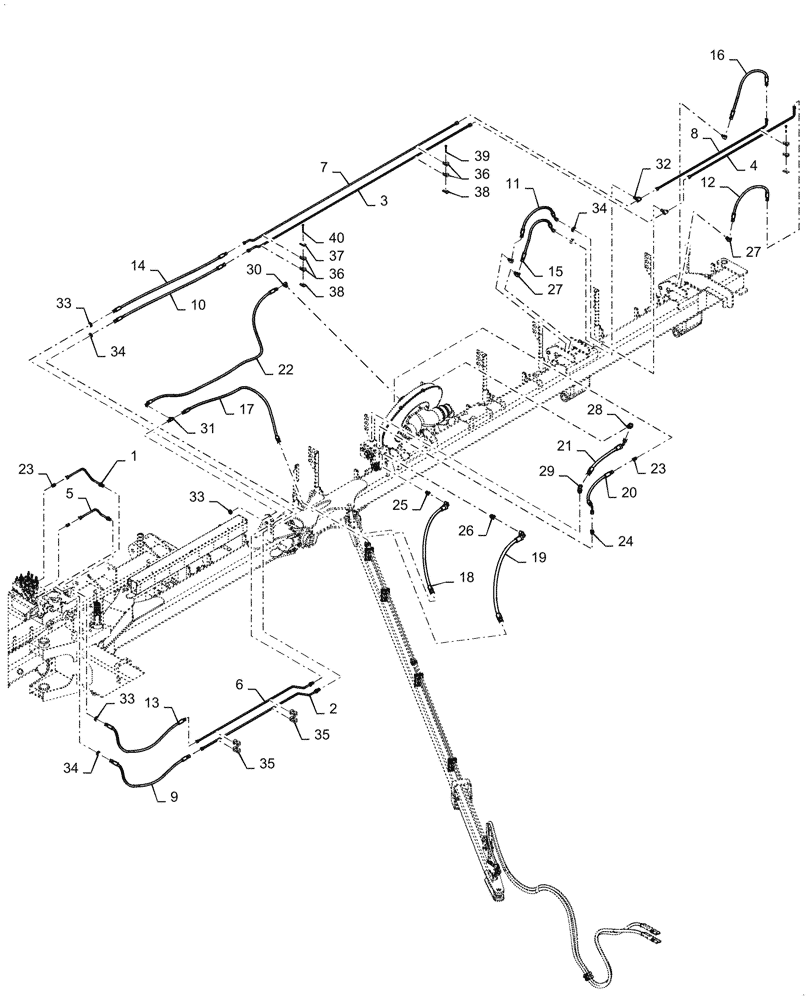

Запчасти Case IH 2150 (35.100.BI[19]) - HYDRAULICS WHEELS LEFT SECTION 24 ROW (35) - HYDRAULIC SYSTEMS

1

47918960

HYD TUBE

Wing Supply Valve Left

1шт.

2

47918937

HYD TUBE

Inner Wing Bottom

1шт.

3

47918939

HYD TUBE

Supply Mid

1шт.

4

47918941

HYD TUBE

Supply Outter

1шт.

5

47918964

HYD TUBE

Return Valve Left

1шт.

6

47918945

HYD TUBE

Wing Stop

1шт.

7

47918947

HYD TUBE

Return Mid

1шт.

8

47918949

HYD TUBE

Return Outer

1шт.

9

47918980

HYDRAULIC HOSE

10mm ID x 1335mm Long

1шт.

10

47918982

HYDRAULIC HOSE

10mm ID x 155 mm Long

1шт.

11

47918983

HYDRAULIC HOSE

10mm ID x 685mm Long

1шт.

12

47929127

HYDRAULIC HOSE

10mm ID x 730mm Long

1шт.

13

47918984

HYDRAULIC HOSE

10mm ID x 1360mm Long

1шт.

14

47918986

HYDRAULIC HOSE

10mm ID x 1605mm Long

1шт.

15

47918987

HYDRAULIC HOSE

10 mm ID x 735mm Long

1шт.

16

47929128

HYDRAULIC HOSE

10 mm ID x 860 mm Long

1шт.

17

47804205

HYDRAULIC HOSE

10 mm ID x 1715mm Long

1шт.

18

47798535

DIA KIT, TRACTOR

16 mm ID x 1175mm Long

1шт.

19

47798354

HYDRAULIC HOSE

19mm Id x 1160 mm Long

1шт.

20

47798389

HYDRAULIC HOSE

12mm ID x 570mm Long

1шт.

21

47798390

HYDRAULIC HOSE

16mm ID x 535mm Long

1шт.

22

47798391

HYDRAULIC HOSE

10 mm ID x 2500mm Long

1шт.

23

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

3шт.

24

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

1шт.

25

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

1шт.

26

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

27

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

4шт.

28

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

29

9991973

ELBOW,1-14" ORFS x 1-1/16"-12 ORB

1шт.

30

84368922

BRANCH TEE,11/16"-16 ORFS x 9/16" ORB

1шт.

31

84305552

HYD CONNECTOR

3/8"

1шт.

32

86639082

TEE,13/16"-16 ORFS, Blkhd Br

2шт.

33

87381287

LOCK NUT

3/8"

3шт.

34

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

1/2"

4шт.

35

87000149

CLAMP

12.7 x 12.7

4шт.

36

87705202

CLAMP,12.7mm OD Tube x 12.7mm OD Tube

11шт.

37

384870A1

PLATE

Clamp Cover

1шт.

38

47808659

BRACKET

Tube Clamp

5шт.

39

87015860

FLANGE BOLT

m8 x 70

4шт.

40

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

1шт.
