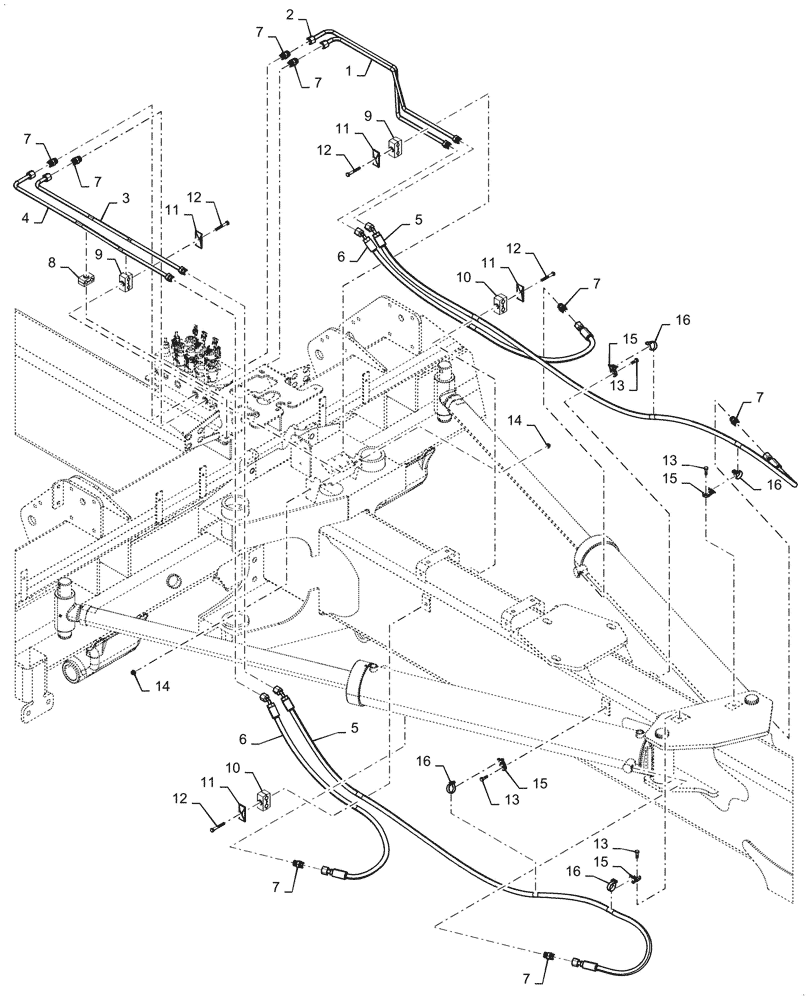

Запчасти Case IH 2150 (35.100.BI[17]) - HYDRAULIC FOLD, 24 ROW (35) - HYDRAULIC SYSTEMS

1

47797227

HYD TUBE

Left Supply

1шт.

2

47797229

HYD TUBE

Left Return

1шт.

3

47797231

HYD TUBE

Right Supply

1шт.

4

47797233

HYD TUBE

Right Return

1шт.

5

47922523

HYDRAULIC HOSE

10 mm ID x 2555 mm Long

2шт.

6

47922524

HYDRAULIC HOSE

10mm ID x 1350 mm Long

2шт.

7

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

8шт.

8

87705202

CLAMP,12.7mm OD Tube x 12.7mm OD Tube

2шт.

9

87000149

CLAMP

12.7mm x 12.7mm

2шт.

10

87000921

HOSE CLAMP

15.87 mm x 15.87mm

2шт.

11

87000230

PLATE

Cover

4шт.

12

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

14

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

15

84474186

BASE

Tie

4шт.

16

84360212

CABLE TIE,294.2mm L, Nylon

4шт.
