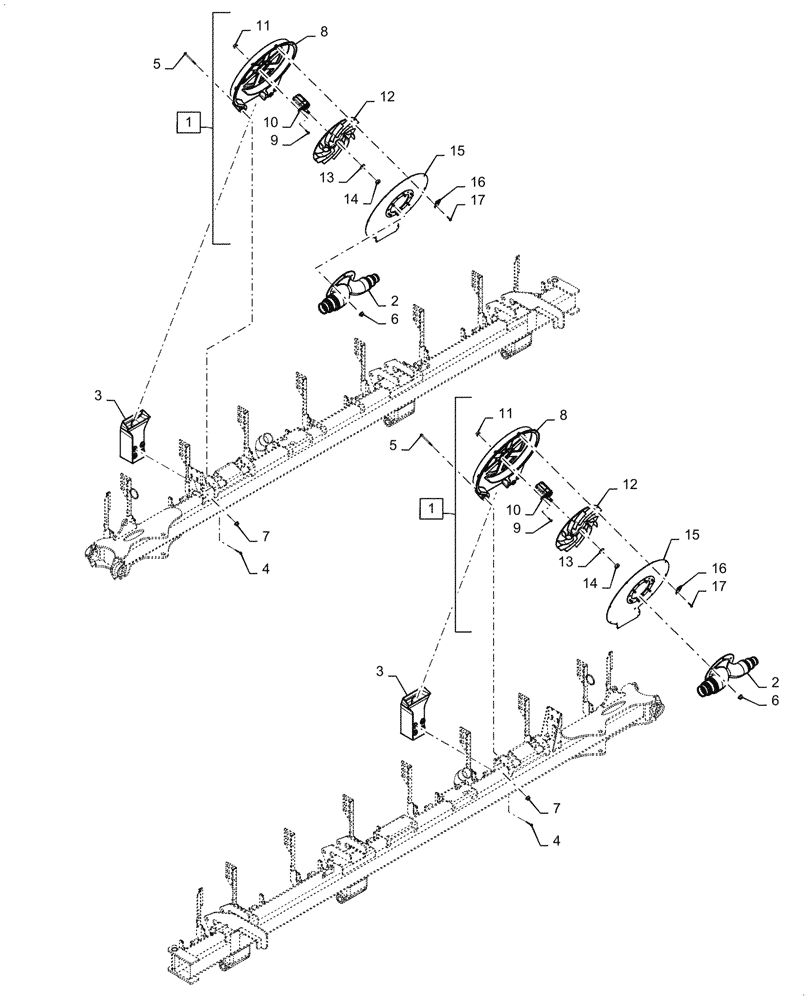

Запчасти Case IH 2150 (79.103.AB[03]) - VACUUM FAN 24 ROW (79) - PLANTING

1

47684787

FAN

Vacuum Incl 8-17

2шт.

2

47837506

MANIFOLD

Intake

2шт.

3

47810551

DUCT

Outlet

2шт.

4

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

4шт.

5

86561786

BOLT

M12 x 140mm

8шт.

6

86619802

FLANGE NUT,M10 x 1.5, Cl 8

12шт.

7

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

8

47684900

HOUSING

Fan Painted

1шт.

9

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

2шт.

10

47779186

HYDRAULIC MOTOR

7cc

1шт.

11

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

12

241856A2

FAN

21"

1шт.

13

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

14

86624024

THIN NUT,5/8"-18, Thin, G8

1шт.

15

47687933

PLATE

Fan Front

1шт.

16

47808177

MOUNT

Hanger Fan

1шт.

17

9804262

BOLT,M10 x 39.2mm, Cl 8.8

10шт.
