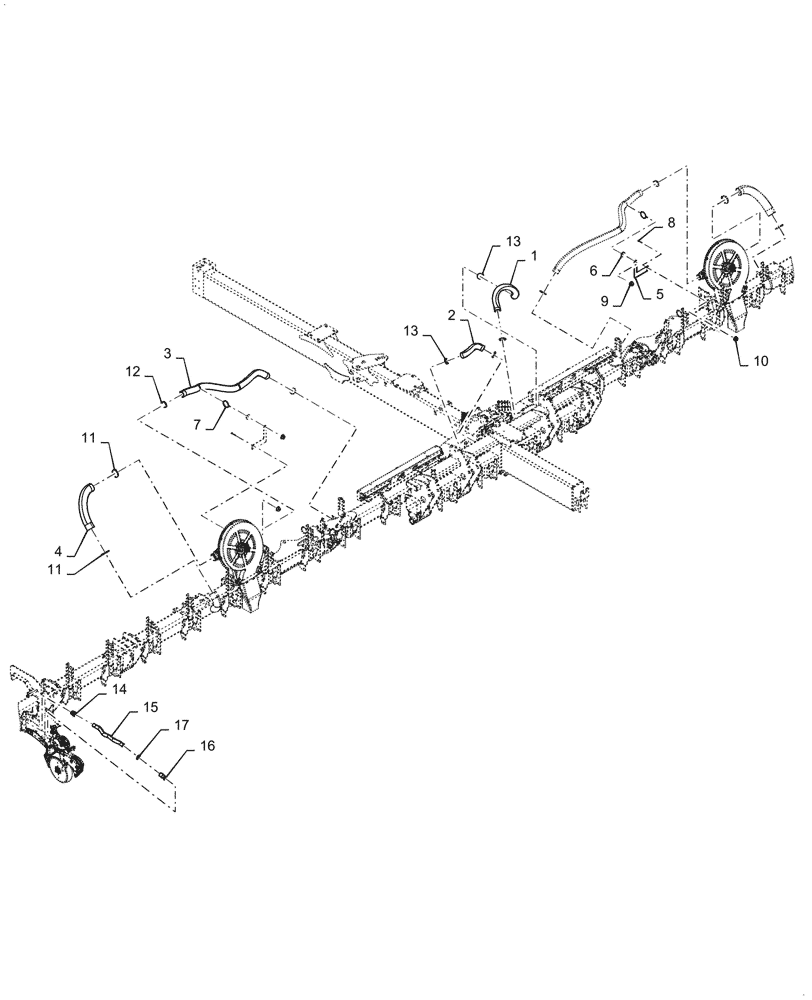

Запчасти Case IH 2150 (79.103.AA[01]) - VACUUM FAN HOSES (79) - PLANTING

1

48006734

HOSE

Bulk Roll 15240 mm 2" Dia Cut To Length 820 mm

1шт.

2

48006734

HOSE

Bulk Roll 15240 mm 2" Dia Cut To Length 950 mm

1шт.

3

47709096

HOSE

Bulk Roll 15240 mm 3" Dia Cut To Length 1995 mm

1шт.

4

47997279

HOSE

Bulk Roll 15240 mm 4" Dia Cut To Length 666 mm

1шт.

5

47996368

PLATE

Mount Painted Red

2шт.

6

86624142

WASHER,0.34" ID x 0.75" OD x 0.12" Thk

2шт.

7

84251797

HOLDER

Hose 3.5" Dia

2шт.

8

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

9

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

11

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

4шт.

12

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

4шт.

13

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

4шт.

14

47838469

BANJO FITTING

Row Unit Vacuum

24шт.

15

47967589

HOSE

Bulk Roll 15240 mm 1.25" Dia Cut To Length 585 mm

24шт.

16

47664630

HYD CONNECTOR

Hose Meter Vacuum

24шт.

17

47706566

RING

Hose Coupling Lock

24шт.
