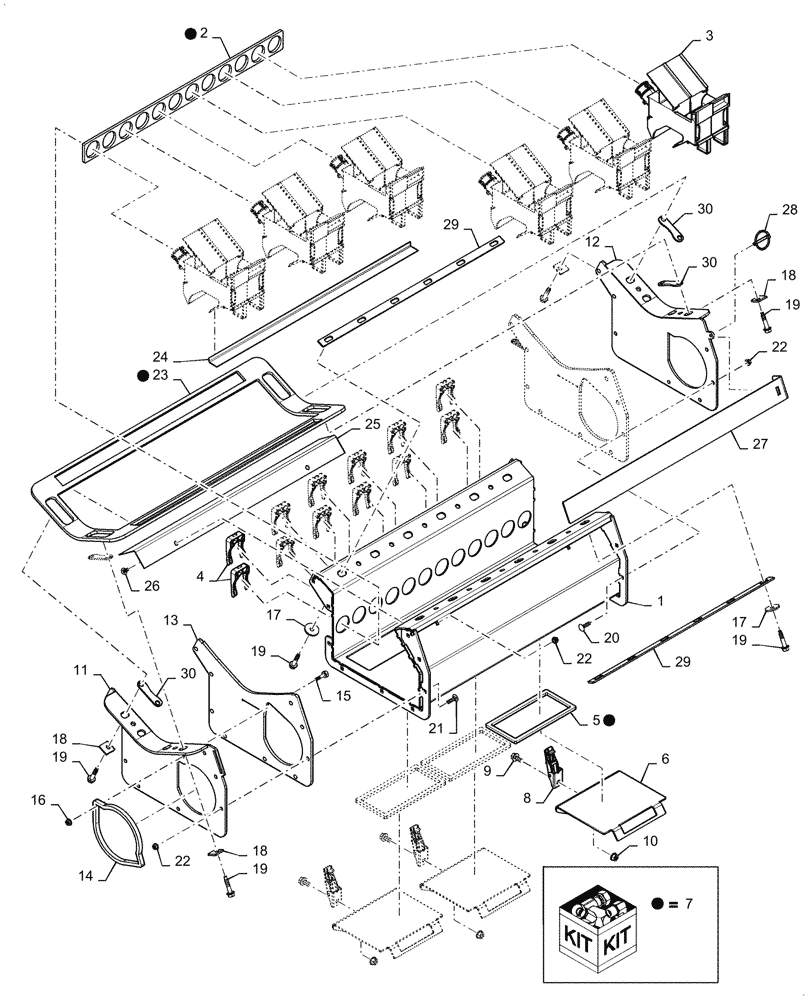

Запчасти Case IH 2150 (79.100.AD[03]) - RIGHT 12 PORT DISTRIBUTOR (79) - PLANTING

1

84489712

DISTRIBUTOR

12 Port Red

1шт.

2

NSS

NOT SOLD SEPARAT

Gasket Segment 12 Port, Incl in 31

1шт.

3

84580208

MANIFOLD

Inductor

6шт.

4

84544326

CLIP

Inductor

12шт.

5

NSS

NOT SOLD SEPARAT

Gasket Seed Door, Incl in 31

1шт.

6

84581148

PLATE

Short Door, Red

1шт.

7

84493588

KIT

12 Port

1шт.

8

47525127

LATCH

Undercenter Double Lock

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

11

84489720

WALL

Left, Red

1шт.

12

84489721

WALL

Right, No Air, Red

1шт.

13

84540713

GASKET

Endcap, Left

1шт.

14

84540715

GASKET

Air Intake

1шт.

15

86511443

BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd

1шт.

16

86624020

FLANGE NUT,Flg, 1/4"-20.G5

1шт.

17

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

12шт.

18

47382493

MOUNTING PLATE

8шт.

19

47806985

BOLT

M8 x 1.25

20шт.

20

47906989

BOLT

M6 x 25

16шт.

21

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

22

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

20шт.

23

NSS

NOT SOLD SEPARAT

Gasket Main 12 Port, Incl in 31

1шт.

24

84489728

SCREEN

12 Port, Lower

1шт.

25

84543871

SCREEN

12 Port, Upper

1шт.

26

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

27

84469491

GRATE

Seed Shutoff, 12 Port

1шт.

28

87459046

LINCH PIN

3/16 x 1-9/16

1шт.

29

47497879

SUPPORT

12 Port Distribution, Red

2шт.

30

47497878

SUPPORT

End Plate Spacer, Red

4шт.
