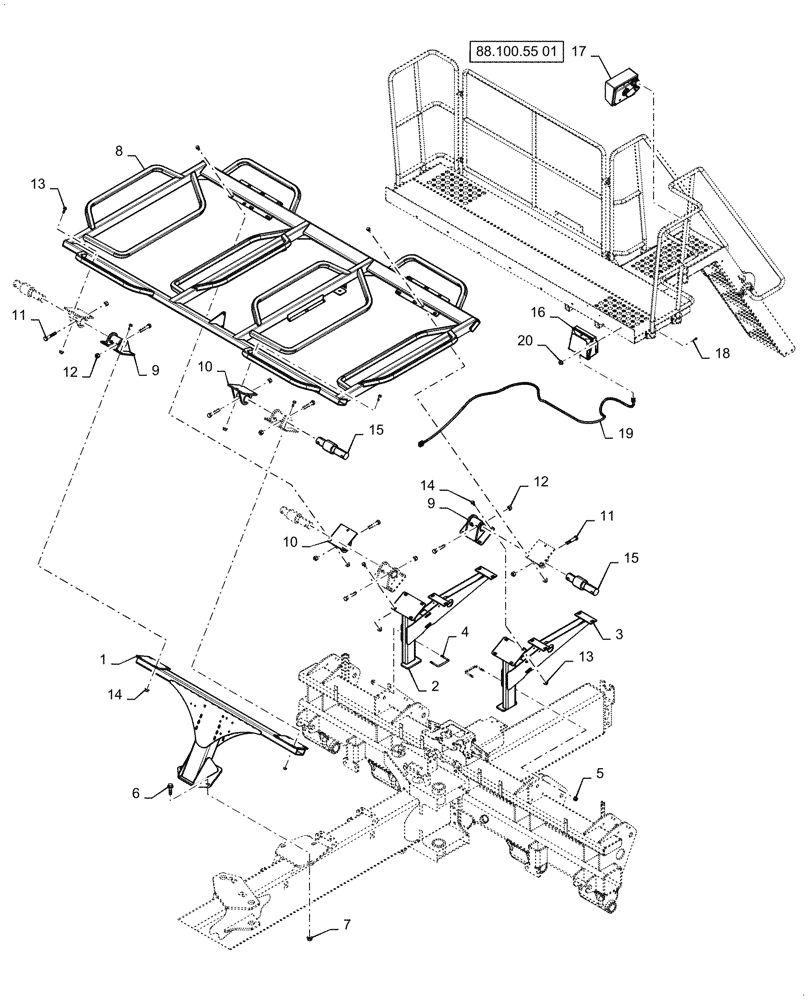

Запчасти Case IH 2150 (79.100.AC[09]) - BULK FILL FRAME WITH SCALES (79) - PLANTING

1

73368103

SUPPORT

Front, Red

1шт.

2

47763435

SUPPORT

Rear, LH

1шт.

3

47762781

SUPPORT

Rear, RH

1шт.

4

47817199

U-BOLT

4шт.

5

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

6

47506619

BOLT,M20 x 88.9mm OAL, Full Thd, Cl 10.9

3шт.

7

86512499

FLANGE NUT,M20 x 2.5, Cl 10

3шт.

8

47763386

CRADLE

Bulk Fill Tank, 60 Bushel

1шт.

9

47504639

SUPPORT

Lower Front

4шт.

10

47504633

SUPPORT

Upper Rear

4шт.

11

395528

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

8шт.

12

725637

NUT,M20 x 2.5, Cl 8

8шт.

13

9670288

BOLT,Hex, M12 x 35mm, Cl 8.8

28шт.

14

9804279

FLANGE NUT,Hex, M12, Cl 8

28шт.

15

84384726

SENSOR

Bulk Fill Load Cell

4шт.

16

84385999

CONTROLLER

Weigh Scales

1шт.

17

84416328

KIT

Weigh Scale Display

1шт.

18

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

19

47684493

WIRE HARNESS

Bulk Fill Scale

1шт.

20

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.
