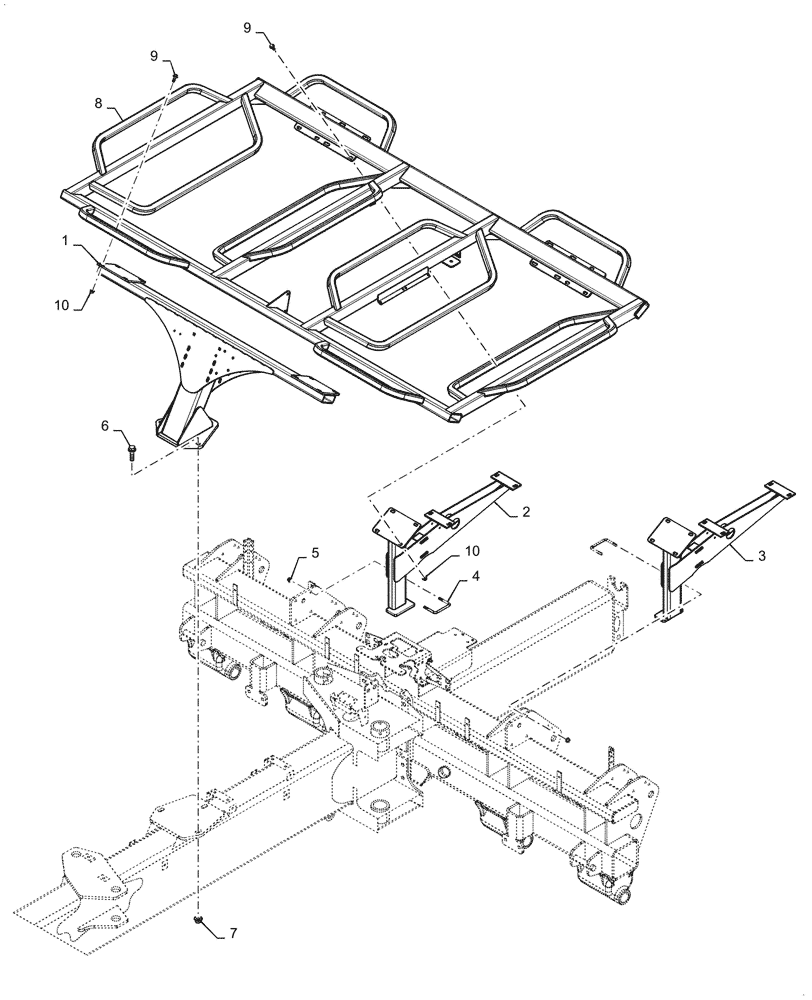

Запчасти Case IH 2150 (77.100.AC[01]) - BULK FILL TANK FRAME (77) - SEEDING/PLANTING

1

73368103

SUPPORT

Front Support, Red

1шт.

2

47763435

SUPPORT

Rear Support LH, Red

1шт.

3

47762781

SUPPORT

Rear Support RH, Red

1шт.

4

47817199

U-BOLT

M12 x 4, Tube

4шт.

5

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

6

47506619

BOLT,M20 x 88.9mm OAL, Full Thd, Cl 10.9

3шт.

7

86512499

FLANGE NUT,M20 x 2.5, Cl 10

3шт.

8

47763386

CRADLE

Tank

1шт.

9

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

16шт.

10

9804278

FLANGE NUT,M10 x 1.5, Cl 8

16шт.
