Запчасти Case IH 2150 (63.110.AB[23]) - LIQUID FERTILIZER PUMP AND VALVE, 24 ROW 600 GALLON (63) - CHEMICAL APPLICATORS

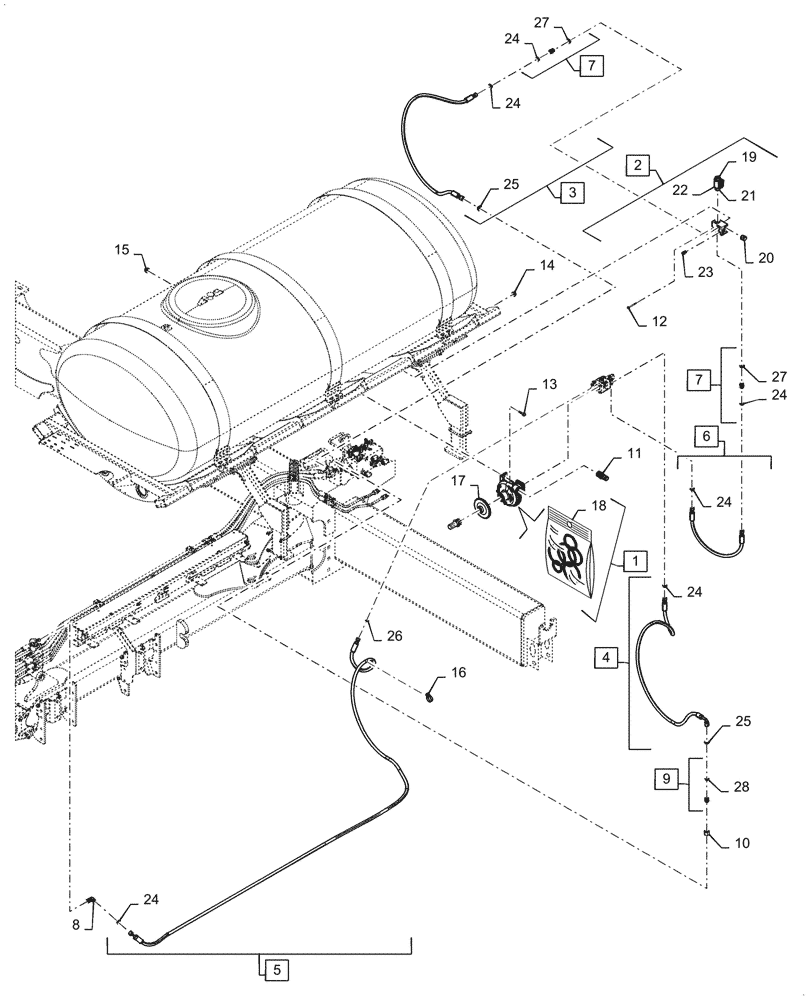

Схема запчастей Case IH 2150 - (63.110.AB[23]) - LIQUID FERTILIZER PUMP AND VALVE, 24 ROW 600 GALLON (63) - CHEMICAL APPLICATORS
11
23
16
19
20
10
3
17
18
13
22
7
27
24
12
26
1
21
24
4
24
25
24
24
6
7
28
14
27
25
15
2
24
5
8
9

Артикул

Название

Примечание

Количество

1

47733296

HYDRAULIC PUMP

Centrifugal, Incl 17, 18

1шт.

2

47898204

HYDRAULIC VALVE

Fertilizer Motor Drive, Incl 19 - 23

1шт.

3

47797197

HYDRAULIC HOSE

1445mm L, Incl 24, 25

1шт.

4

47797198

HYDRAULIC HOSE

1855mm L, Incl 24, 25

1шт.

5

47797199

HYDRAULIC HOSE

4155mm L, Incl 24, 26

1шт.

6

47760934

HYDRAULIC HOSE

735mm L, Incl 24

1шт.

7

87672176

HYD CONNECTOR

Incl 24, 27

2шт.

8

201-319

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

9

84989629

HYD CONNECTOR,13/16" - 16 ORB x 1" ORFS

Incl 28

1шт.

10

85802819

TUBE NUT,1"-14 x 24mm L

1шт.

11

47709967

BANJO FITTING

1шт.

12

87023526

BOLT,M6 x 1.0 x 76.6mm, Cl 8.8

2шт.

13

9804263

BOLT,M10 x 49.2mm, Cl 8.8

2шт.

14

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

15

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

16

84360212

CABLE TIE,294.2mm L, Nylon

3шт.

17

47860795

IMPELLER

1шт.

18

87266722

REPAIR KIT

O-Ring, Body Seal, Pump Seal

1шт.

19

440028A1

NUT

1шт.

20

278200A1

VALVE

Compensator

1шт.

21

254969A2

HYDRAULIC VALVE

FLow Control Cartridge

1шт.

22

243254A1

KIT

Solenoid

1шт.

23

1341811C1

SPRING-CHECK

Kit

1шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

25

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

26

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

27

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

Выбрано товаров: 28
