(63.110.AB[21]) - LIQUID FERTILIZER HOSE COMPLETING, 24 ROW 600 GALLON

Запчасти Case IH 2150 (63.110.AB[21]) - LIQUID FERTILIZER HOSE COMPLETING, 24 ROW 600 GALLON (63) - CHEMICAL APPLICATORS

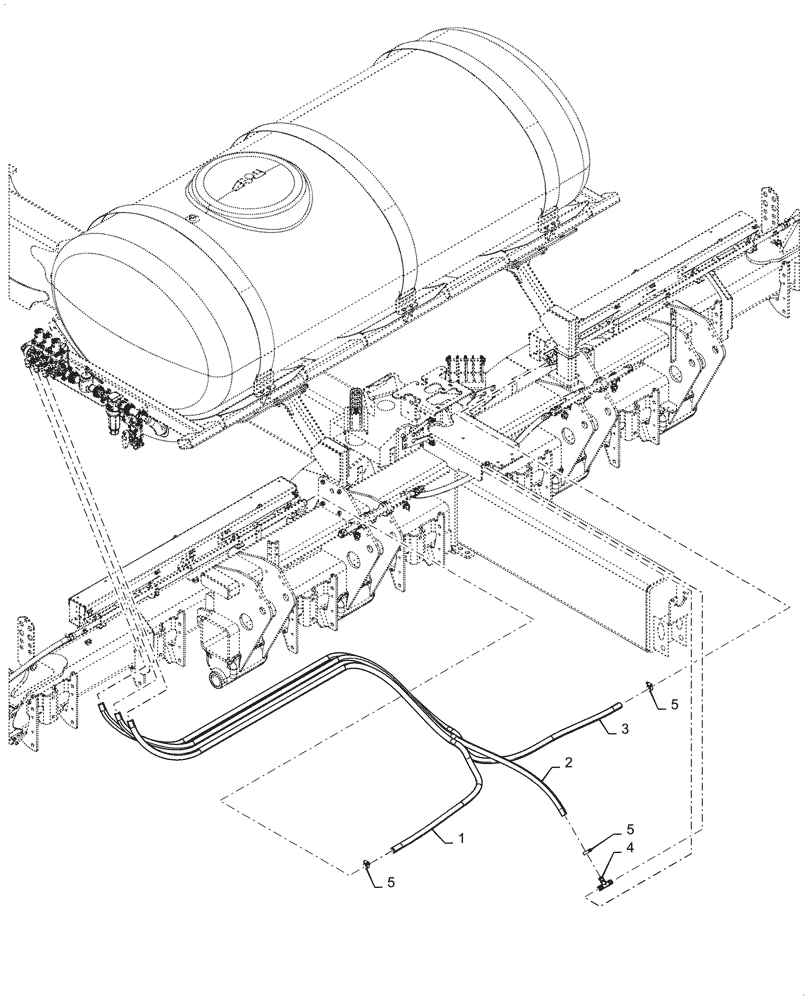

Схема запчастей Case IH 2150 - (63.110.AB[21]) - LIQUID FERTILIZER HOSE COMPLETING, 24 ROW 600 GALLON (63) - CHEMICAL APPLICATORS
4
5
2
1
3
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

241923A1

HOSE

Bulk 3/4" ID, Cut to Length 3775mm L

1шт.

2

241923A1

HOSE

Bulk 3/4" ID, Cut to Length 3160mm L

1шт.

3

241923A1

HOSE

Bulk 3/4" ID, Cut to length 3655mm L

1шт.

4

87669667

FITTING,3/4" Hose Barb Tee

1шт.

5

87016721

HOSE CLAMP,17.5mm - 31.7mm

3шт.
