Запчасти Case IH 2150 (63.110.AB[14]) - LIQUID FERTILIZER PUMP AND VALVE W/ O TANK BRACKET (63) - CHEMICAL APPLICATORS

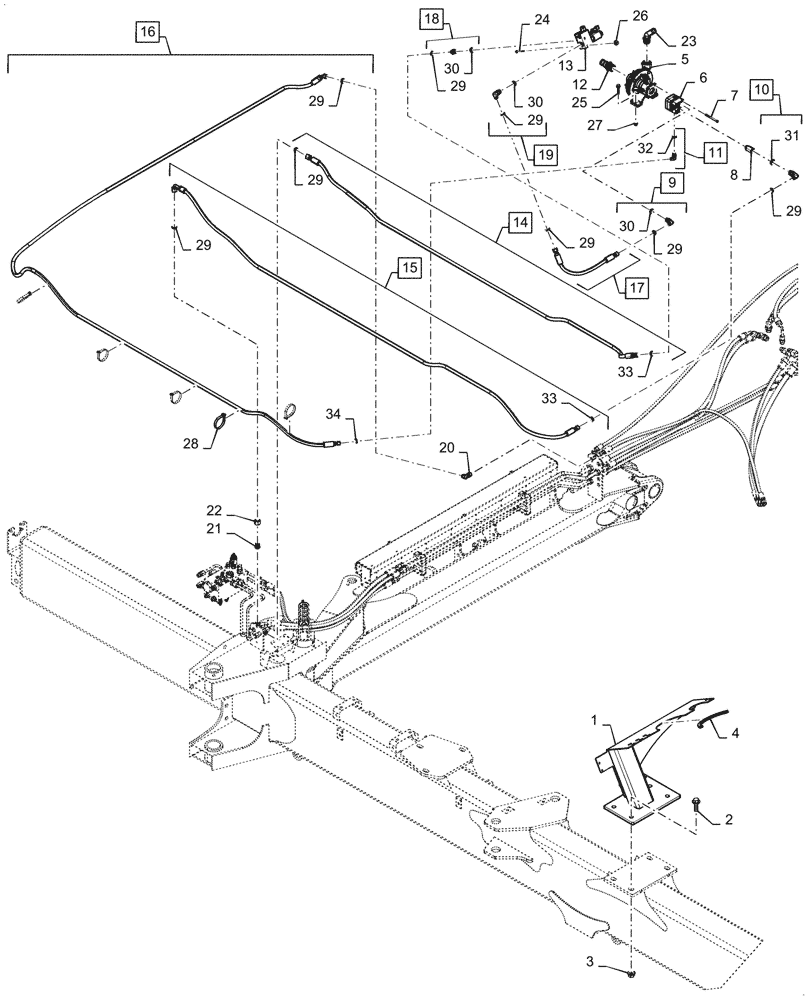

Схема запчастей Case IH 2150 - (63.110.AB[14]) - LIQUID FERTILIZER PUMP AND VALVE W/ O TANK BRACKET (63) - CHEMICAL APPLICATORS
29
24
17
13
33
30
22
32
15
34
29
29
26
5
16
25
33
18
2
29
3
30
29
31
19
27
21
1
11
28
29
6
29
9
30
4
12
14
8
10
7
29
23
20

Артикул

Название

Примечание

Количество

1

47753729

BRACKET

Liquid Fertlizer

1шт.

2

86511853

BOLT,Hex Flg, M20 x 60, 8.8

4шт.

3

86512496

FLANGE NUT,M20 x 2.5, Flg, Cl 8

4шт.

4

87062C1

GASKET

Edge Trim, Black

1шт.

5

47733296

HYDRAULIC PUMP

1шт.

6

47733299

HYDRAULIC PUMP

1шт.

7

83929306

HEX SOC SCREW,5/16"-18 x 3 1/2", Gr 8

4шт.

8

47733330

HYD CONNECTOR

1шт.

9

84390792

90 ELBOW

Incl 29, 30

1шт.

10

47745337

ELBOW

Incl 29, 31

1шт.

11

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 32

1шт.

12

47709965

PIPE FITTING,1-1/4" Male Thread x 1-1/4" Hose Barb

1шт.

13

47898204

HYDRAULIC VALVE

1шт.

14

47922585

INTAKE AIR HOSE

2980mm L, 29, 33

1шт.

15

47922586

RADIATOR HOSE

3460mm L, Incl 29, 33

1шт.

16

47922587

HOSE

6115mm L, Incl 29, 34

1шт.

17

47715957

HOSE

625mm L, Incl 29

1шт.

18

87672176

HYD CONNECTOR

Incl 29, 30

1шт.

19

84390792

90 ELBOW

Incl 29, 30

1шт.

20

201-319

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

21

84989629

HYD CONNECTOR,13/16" - 16 ORB x 1" ORFS

1шт.

22

85802819

TUBE NUT,1"-14 x 24mm L

1шт.

23

47796392

FITTING,1" Male Thread x 1" 90 Degree Hose Barb

1шт.

24

87023526

BOLT,M6 x 1.0 x 76.6mm, Cl 8.8

2шт.

25

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

26

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

27

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

28

84360212

CABLE TIE,294.2mm L, Nylon

5шт.

29

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

30

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

31

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

34

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 34
