Запчасти Case IH 2150 (55.516.AL[02]) - ROW UNIT BACKBONE HARNESS (55) - ELECTRICAL SYSTEMS

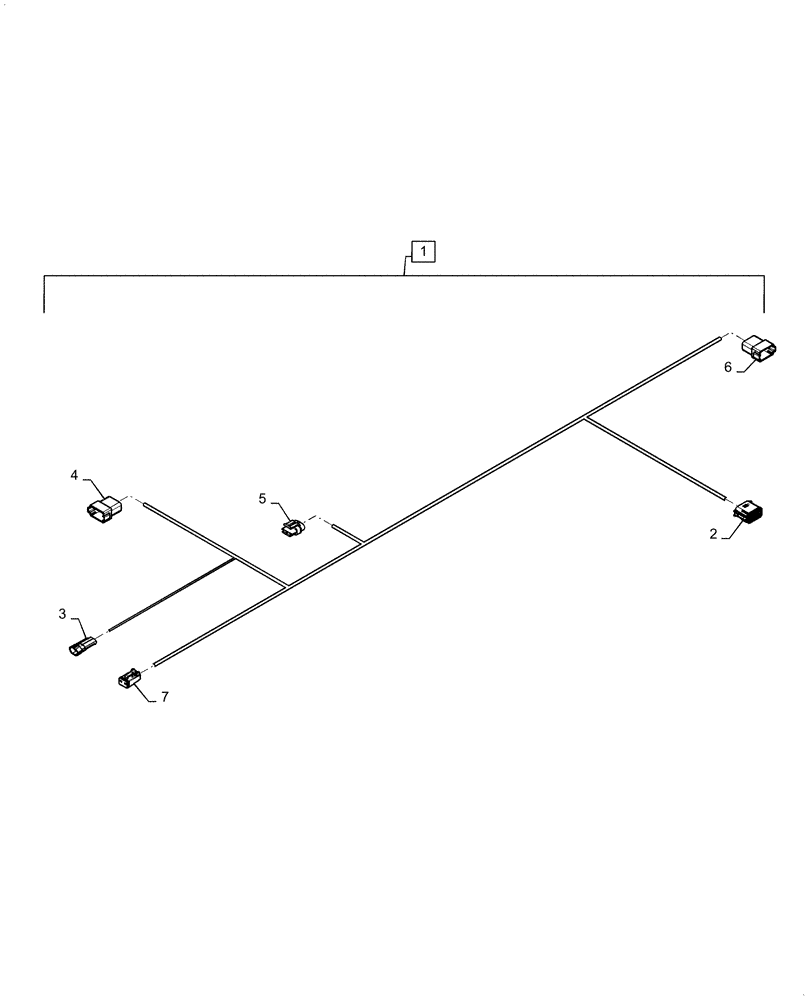

Схема запчастей Case IH 2150 - (55.516.AL[02]) - ROW UNIT BACKBONE HARNESS (55) - ELECTRICAL SYSTEMS
2
3
7
6
4
5
1

Артикул

Название

Примечание

Количество

1

47953405

WIRE HARNESS

Row Unit Backbone Inlc 2 -7

1шт.

2

87708149

ELEC CONNECTOR

SRM

1шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

12шт.

2

87695651

LOCKING TAB,Wedge Lock

Lock

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Sealing

12шт.

3

87693431

WIRE CONNECTOR

On Row Liquid Fertilizer

1шт.

3

87690460

TERMINAL

Wire

2шт.

3

87689636

PLUG,Red, Taxi Seal Connector Cavity

Sealing

2шт.

4

87695724

ELEC CONNECTOR,Male, 12 Pole

Backbone Connection

1шт.

4

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

12шт.

4

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock

1шт.

4

84068583

PLUG,12 - 16 Ga, White

Sealing

12шт.

5

87688712

WIRE CONNECTOR,Female

Fuse

1шт.

5

87688851

TERMINAL

Fuse

2шт.

5

87717080

FUSE,15A, Blue

15 Amp

1шт.

5

87688863

CAP

Cover Black

1шт.

6

87695724

ELEC CONNECTOR,Male, 12 Pole

Motor Drives and Seed Sensor

1шт.

6

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

12шт.

6

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock

1шт.

6

84068583

PLUG,12 - 16 Ga, White

Sealing

12шт.

7

87711966

PLUG

DF Valve

1шт.

7

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

2шт.

7

87712180

ELEC CONNECTOR

Wedge Lock

1шт.

7

84068583

PLUG,12 - 16 Ga, White

2шт.

Выбрано товаров: 24
