Запчасти Case IH 2150 (55.516.AL[01]) - BULK FILL HARNESS (55) - ELECTRICAL SYSTEMS

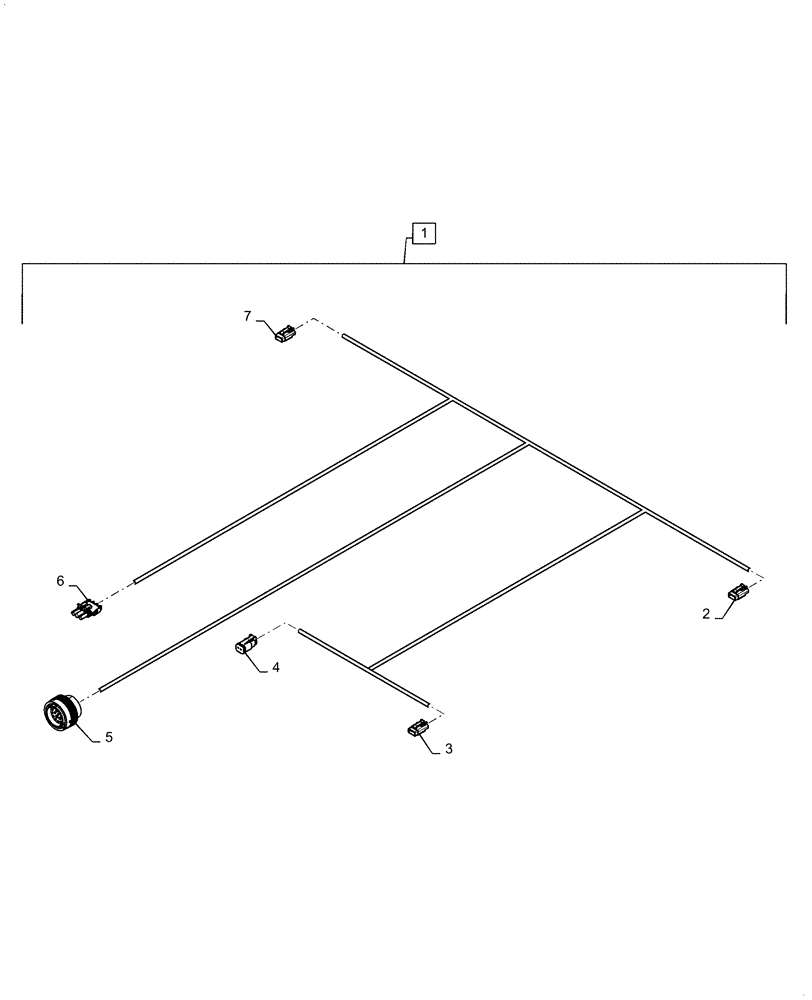

Схема запчастей Case IH 2150 - (55.516.AL[01]) - BULK FILL HARNESS (55) - ELECTRICAL SYSTEMS
4
6
1
2
3
7
5

Артикул

Название

Примечание

Количество

1

47684495

WIRE HARNESS

Bulk Fill Incl 2 - 7

1шт.

2

87696551

CONTACT HOUSING,Female, 3 Pole

Bin Level

1шт.

2

87697939

TERMINAL

Female

1шт.

2

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Female

1шт.

2

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

1шт.

2

87705586

WEDGE

Lock 3 Way Plug

1шт.

2

84807680

PLUG

Sealing

1шт.

3

87696551

CONTACT HOUSING,Female, 3 Pole

Bulk Fill Fan Feedback

1шт.

3

87697939

TERMINAL

Female

1шт.

3

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Female

1шт.

3

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

1шт.

3

87705586

WEDGE

Lock 3 Way Plug

1шт.

3

84807680

PLUG

Sealing

1шт.

4

87695582

ELEC CONNECTOR,Female, 2 Pole

1шт.

4

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

1шт.

4

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

4

84068583

PLUG,12 - 16 Ga, White

1шт.

5

47712801

WIRE CONNECTOR

UCM Bulk Fill

1шт.

6

87644909

WIRE CONNECTOR,Female, 3 Pins

Bulk Fill Lights

1шт.

6

87692883

CABLE TERMINAL

Male

1шт.

6

87692882

ELEC. TERMINAL PIN

Male

1шт.

6

87692880

CABLE TERMINAL

Male

1шт.

6

87686742

PLUG

Cavity Green

1шт.

7

87696551

CONTACT HOUSING,Female, 3 Pole

1шт.

7

87697939

TERMINAL

Female

1шт.

7

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Female

1шт.

7

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

1шт.

7

87705586

WEDGE

Lock

1шт.

7

84807680

PLUG

Sealing

1шт.

Выбрано товаров: 30
