(55.405.AA[03]) - WIRE HARNESS REAR HITCH EXTENTION

Запчасти Case IH 2150 (55.405.AA[03]) - WIRE HARNESS REAR HITCH EXTENTION (55) - ELECTRICAL SYSTEMS

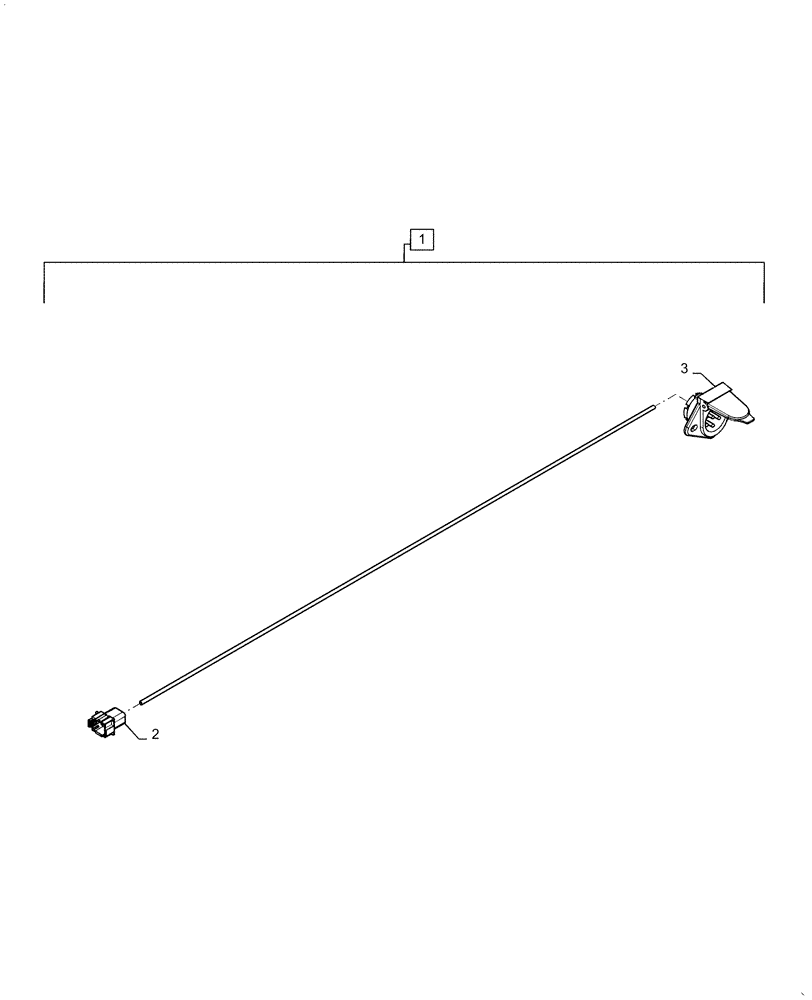

Схема запчастей Case IH 2150 - (55.405.AA[03]) - WIRE HARNESS REAR HITCH EXTENTION (55) - ELECTRICAL SYSTEMS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47807573

WIRE HARNESS

Rear Hitch Extention

1шт.

2

87700321

ELEC CONNECTOR,Female, 8 Cavities

Planter Toolbar Connection

1шт.

2

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Male

5шт.

2

84806919

PLUG,Wedge Lock

Wedge Lock

1шт.

2

84068583

PLUG,12 - 16 Ga, White

5шт.

3

82001021

POWER SOCKET,7 Pins

2nd Implement Connection

1шт.

3

NS

NOT SERVICED

Terminals are Screws On This Conector

5шт.

3

84164764

BOOT

Sealing Plug

1шт.
