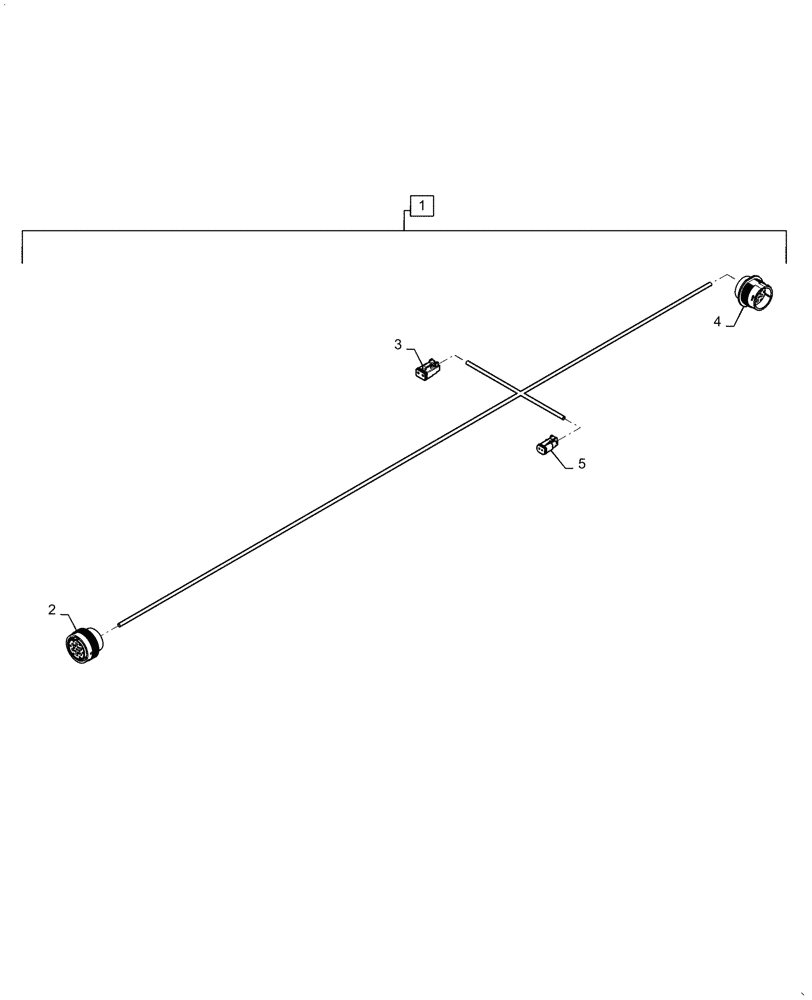

Запчасти Case IH 2150 (55.015.AB[02]) - WIRE HARNESS 12/16 ROW HITCH (55) - ELECTRICAL SYSTEMS

1

47876751

WIRE HARNESS

Hitch Wire Harness Incl 2 - 5

1шт.

2

87703940

ELEC CONNECTOR

UCM Hitch

1шт.

2

87695923

TERMINAL

Female Nickel

19шт.

2

87700175

ELEC CONNECTOR

Shell

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Sealing Plug

19шт.

3

87711966

PLUG

Case Drain Switch

1шт.

3

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

2шт.

3

84068583

PLUG,12 - 16 Ga, White

2шт.

3

87712180

ELEC CONNECTOR

Lock

1шт.

4

87696098

ELEC CONNECTOR

Planter Bulkhead

1шт.

4

87696144

ELEC. TERMINAL PIN,Male, 2 - 3.5 mm2

19шт.

4

87700175

ELEC CONNECTOR

Shell

1шт.

4

84068583

PLUG,12 - 16 Ga, White

1шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

Cooler Power

1шт.

5

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

2шт.

5

84068583

PLUG,12 - 16 Ga, White

2шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

1шт.
