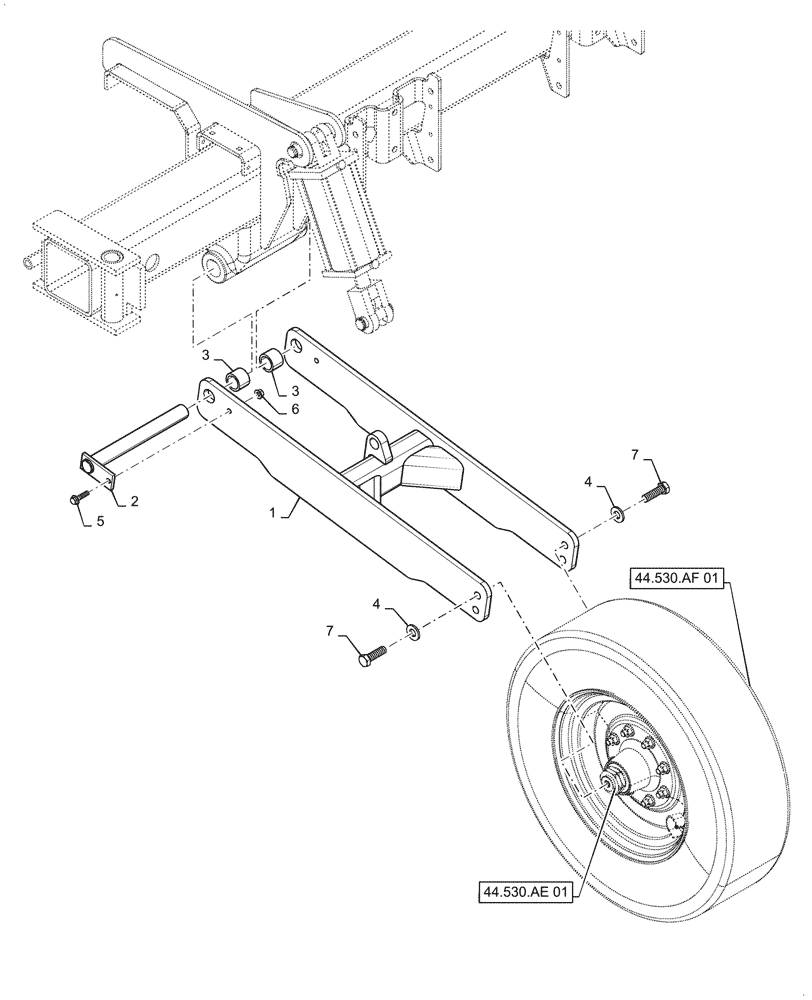

Запчасти Case IH 2150 (44.530.AB[02]) - CARRYING WHEEL SUSPENSION, WING SECTION 12/16 ROW (44) - WHEELS

1

73368131

ARM

Wing Wheel Red

2шт.

2

87632193

PIVOT PIN

Wing Wheel

2шт.

3

87503066

BUSHING,38.29mm ID x 50.93mm OD x 37.35mm L

4шт.

4

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

4шт.

5

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

2шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

7

86639154

BOLT,Hex, M20 x 65mm, Cl 10.9

4шт.
