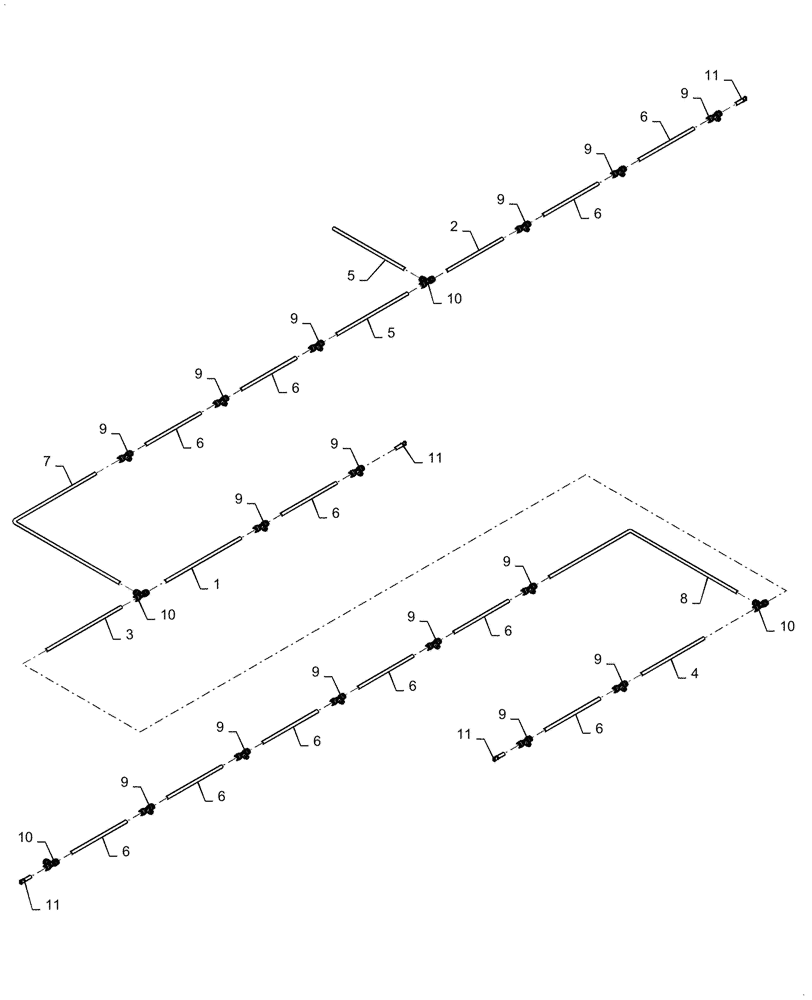

Запчасти Case IH 2150 (36.100.AB[02]) - PNEUMATIC LINES DOWN FORCE RESIDUE MANAGER (36) - PNEUMATIC SYSTEM
![Схема запчастей Case IH 2150 - (36.100.AB[02]) - PNEUMATIC LINES DOWN FORCE RESIDUE MANAGER (36) - PNEUMATIC SYSTEM](https://partsell.ru/storage/images/caseih/5415385.png)
6
2
9
9
9
6
5
10
6
6
9
9
6
9
6
6
4
9
6
9
7
9
9
9
1
11
11
11
5
6
9
8
3
6
9
11
10
9
6
10
9
10
№
Артикул
Название
Примечание
Количество
1
47619235
TUBE
Bulk Roll 3/8" Cut To Length 140 mm Red
1шт.
2
47619235
TUBE
Bulk Roll 3/8" Cut To Length 200 mm Red
1шт.
3
47619235
TUBE
Bulk Roll 3/8" Cut To Length 320 mm Red
1шт.
4
47619235
TUBE
Bulk Roll 3/8" Cut To Length 380 mm Red
1шт.
5
47619235
TUBE
Bulk Roll 3/8" Cut To Length 500 mm Red
2шт.
6
47619235
TUBE
Bulk Roll 3/8" Cut To Length 740 mm Red
11шт.
7
47619235
TUBE
Bulk Roll 3/8" Cut To Length 2600 mm Red
1шт.
8
87675607
HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L
1/4" Cut To Length 1320 mm Black
16шт.
9
47633933
HYD CONNECTOR
3/8" x 3/8" x 1/4"
16шт.
10
47633932
HYD CONNECTOR
3/8" x 3/8" x 3/8"
3шт.
11
47705231
PLUG
Plastic 3/8"
4шт.
Выбрано товаров: 11
