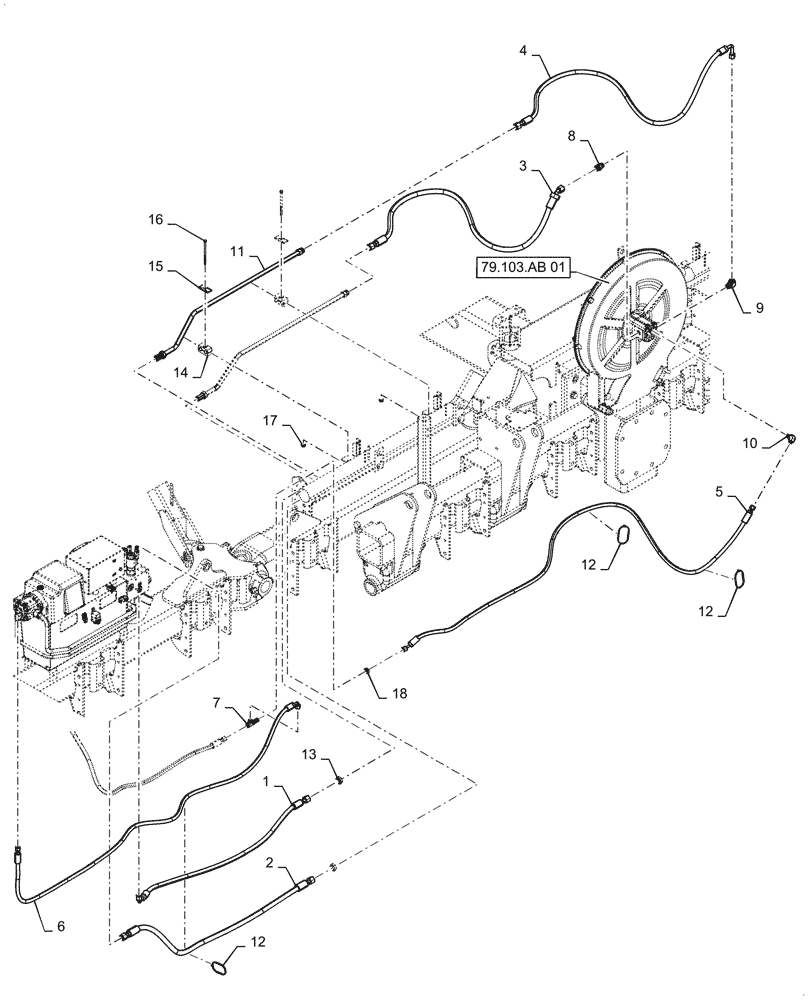

Запчасти Case IH 2150 (35.744.AH[03]) - HYDRAULIC VACUUM HOSES, 12 / 16 ROW (35) - HYDRAULIC SYSTEMS

1

47916540

HYDRAULIC HOSE

13 mm ID x 1350 mm Long

1шт.

2

47732083

HOSE

16 mm ID x 1450 mm Long

1шт.

3

47733996

HOSE

16 mm ID x 1660 mm Long

1шт.

4

47733994

HOSE

13 mm ID x 1740 mm Long

1шт.

5

47738555

HOSE

10 mm ID x 2840 mm Long

1шт.

6

47738561

HOSE

10 mm ID x 2430 mm Long 16 Row

1шт.

6

47956667

HYDRAULIC HOSE

10 mm ID x 2780 mm Long 12 Row

1шт.

7

84305552

HYD CONNECTOR

Bulkhead 3/8"

1шт.

8

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

1шт.

9

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

1шт.

10

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

11

47733998

TUBE

Inner Wing Left Front Vacuum

2шт.

12

87502038

CABLE TIE

Small

3шт.

13

87381294

LOCK NUT

5/8"

2шт.

14

87000140

CLAMP,Tube, 19.05mm

19.05 x 19.05 mm

2шт.

15

87000230

PLATE

Cover

2шт.

16

300807

BOLT,Hex, M8 x 140, 8.8

2шт.

17

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

18

87381287

LOCK NUT

3/8" Tube

1шт.
