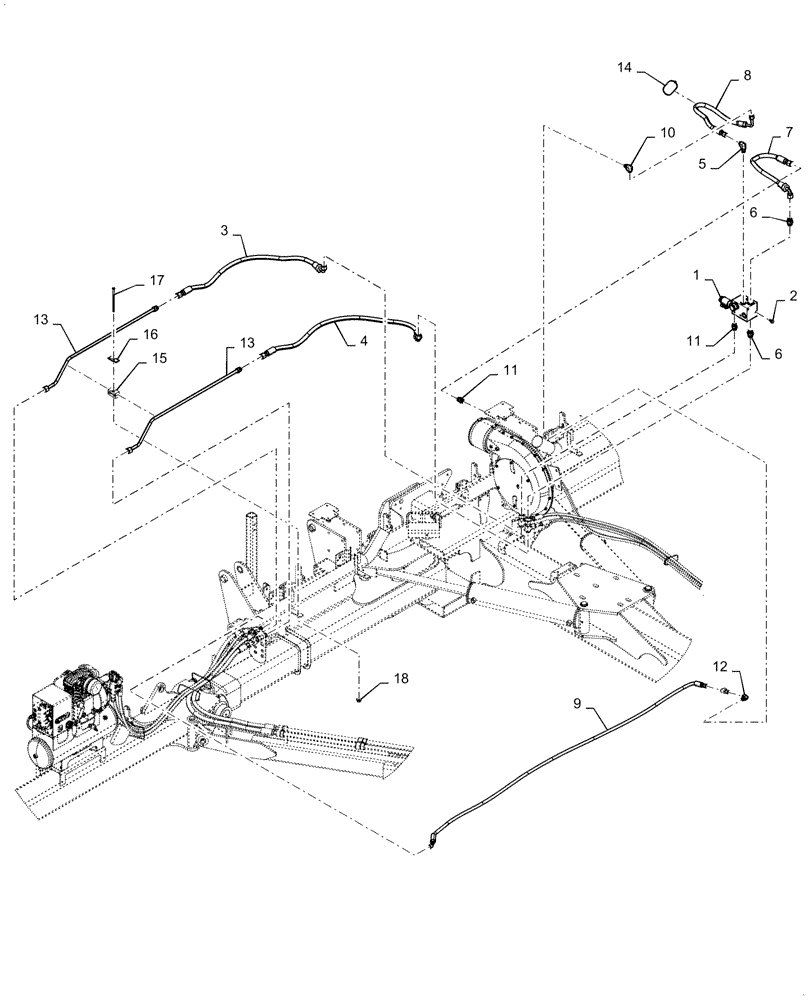

Запчасти Case IH 2150 (35.744.AH[02]) - BULK FILL FAN HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

47919040

VALVE

Single Section Motor Control

1шт.

2

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

3

47736631

HOSE

16 mm ID x 1300 mm Long To Front Inner Wing Tube

1шт.

4

47865690

HOSE

16 mm ID x 1440 mm Long To Rear Inner Wing Tube

1шт.

5

85802961

ELBOW,13/16"-16 UN-2A x 7/8"-14 UNF-2A

90 Deg 1/2" ORF-ORB 5/8"

1шт.

6

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

5/8" ORF-ORB 3/4"

2шт.

7

47736634

HOSE

16 mm ID x 1100 mm Long To Motor Outlet

1шт.

8

47736636

HOSE

13 mm ID x 1000 mm Long To Motor Inlet

1шт.

9

47736640

HOSE

10 mm ID x 2460 mm Long To Right Wing Bulk

1шт.

10

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

1шт.

11

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

2шт.

12

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

13

47794333

TUBE

Inner Wing Bulk Fill

2шт.

14

87502038

CABLE TIE

Small

2шт.

15

87000150

CLAMP,15.869mm ID

2шт.

16

87000230

PLATE

Cover

2шт.

17

412110

BOLT,Hex, M8 x 1.25 x 170mm, Cl 8.8

2шт.

18

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.
