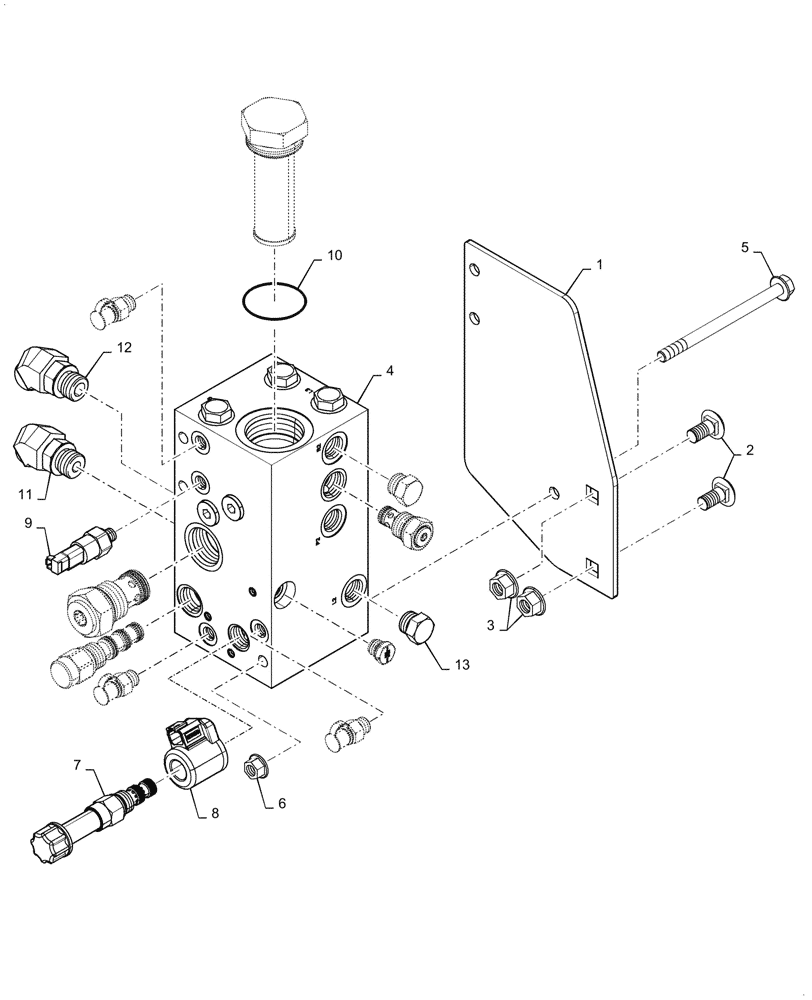

Запчасти Case IH 2150 (35.744.AD[05]) - HYDRAULIC DOWN PRESSURE DELTA FORCE VALVE (35) - HYDRAULIC SYSTEMS

1

47729492

BRACKET

Delta Force Red

1шт.

2

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

2шт.

3

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

4

47794271

VALVE BODY

Delta Force 12 Row

1шт.

5

87681213

BOLT,Hex, M10 x 140mm, Cl 10.9

3шт.

6

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

7

73368547

VALVE

Delt Force

1шт.

8

73368546

VALVE

Solenoid

1шт.

9

47801763

PRESSURE SWITCH

Valve

1шт.

10

47870875

O-RING

HDP Valve Filter

1шт.

11

87026877

ELBOW,45 Degree, 13/16"-16 x 7/8"-14, Adj, ORFS

1шт.

12

87301491

45 ELBOW

5/8"

1шт.

13

214389

PLUG,3/4" - 16 ORB

3шт.
