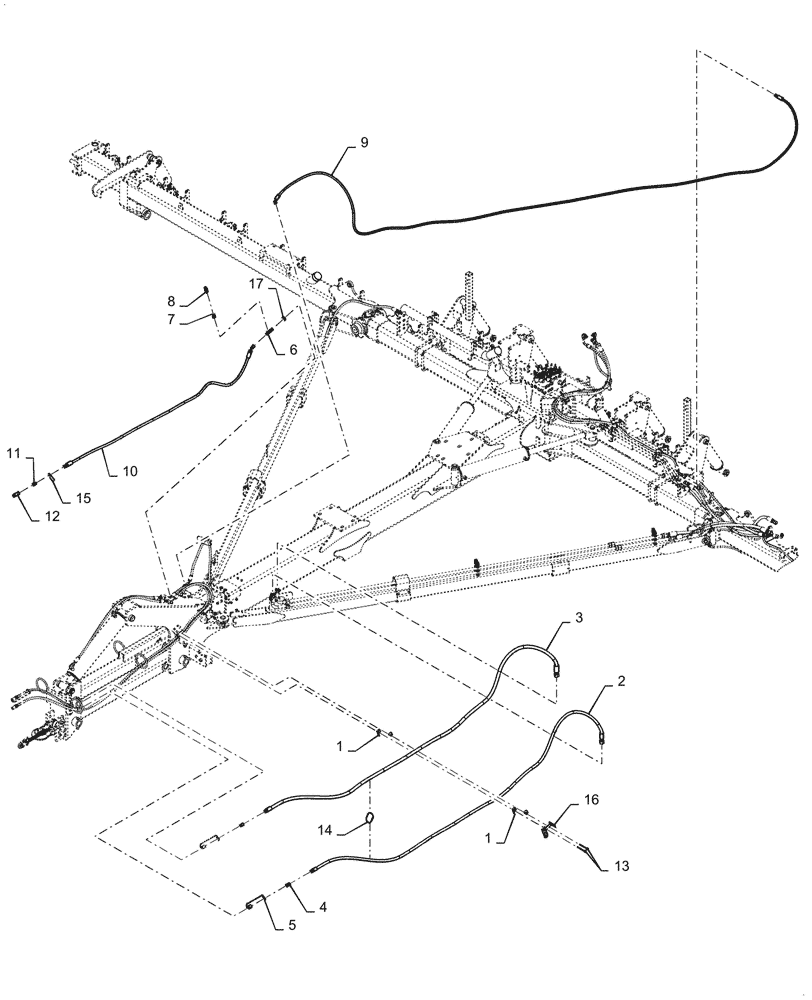

Запчасти Case IH 2150 (35.100.BI[13]) - HYDRAULICS ALTERNATOR/FAN DRAW BAR HITCH (35) - HYDRAULIC SYSTEMS

1

87482623

CLAMP

Large

6шт.

2

47926598

HYDRAULIC HOSE

16mm ID x 4210mm Long Tractor Remote Pressure

1шт.

3

47926597

HYDRAULIC HOSE

19mm ID x 4210mm Long Tractor Remote Return

1шт.

4

86592080

QUICK MALE COUPLING

2шт.

5

333722A1

CAP

Quick Coupler Green

2шт.

6

47825113

UNION TEE

12mm

1шт.

7

47745911

ADAPTER

13/16-16

1шт.

8

84389953

PRESSURE SWITCH

5 Bar

1шт.

9

47872417

HYDRAULIC HOSE

10mm ID x 6040mm Long

1шт.

10

47872436

HYDRAULIC HOSE

13mm Id x 3420mm Long

1шт.

11

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

12

385358A1

QUICK MALE COUPLING,3/8"

1шт.

13

86547487

BOLT,Hex Flg, M10 x 100, 8.8

2шт.

14

87502038

CABLE TIE

Small

2шт.

15

47432848

DECAL

Case Drain

1шт.

16

47947173

BRACKET

Support Red

1шт.

17

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

1шт.
