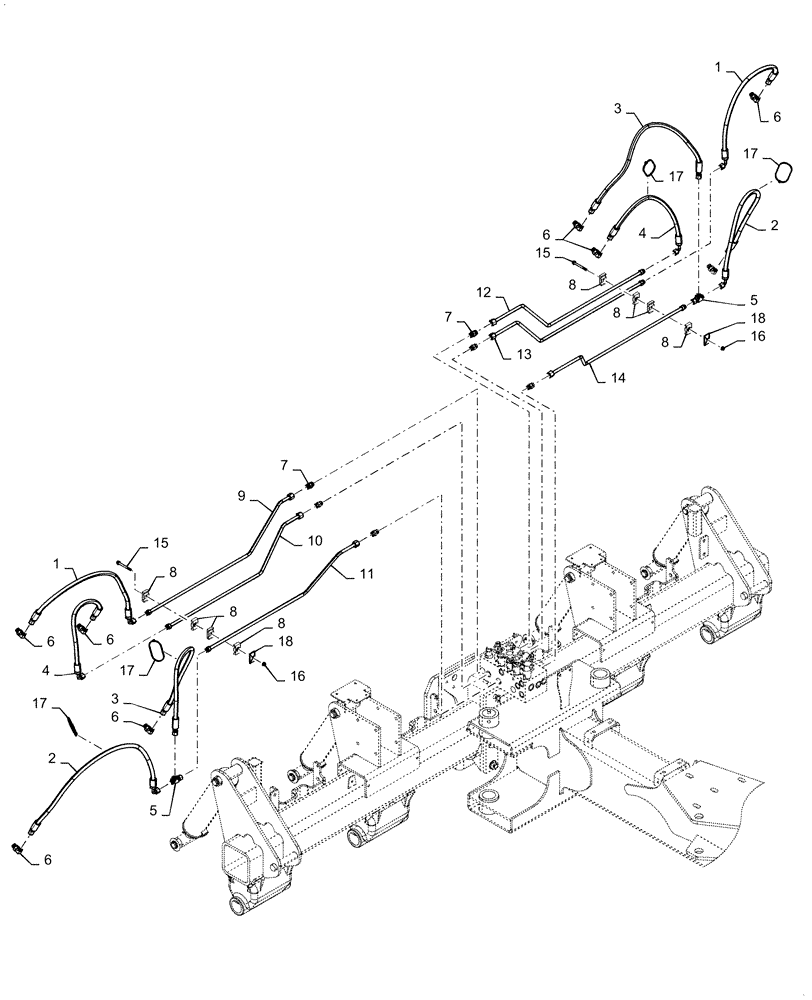

Запчасти Case IH 2150 (35.100.BI[02]) - CENTER WHEEL HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

47919312

HYDRAULIC HOSE

10 mm ID x 970 mm Long

2шт.

2

47721162

HOSE

10 mm ID x 1280 mm Long

2шт.

3

47721163

HOSE

10 mm ID x 1120 mm Long

2шт.

4

47721166

HOSE

10 mm ID x 700 mm Long

2шт.

5

47726686

UNION TEE

Swivle 3/8"

2шт.

6

84390792

90 ELBOW

3/8"

8шт.

7

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

6шт.

8

87705202

CLAMP,12.7mm OD Tube x 12.7mm OD Tube

4шт.

9

47860589

TUBE

Right Inner Cylinder Base

1шт.

10

47860590

TUBE

Right Outer Cylinder Base

1шт.

11

47860591

TUBE

Right Center Cylinder Rod End

1шт.

12

47860592

TUBE

Left Inner Cylinder Base End

1шт.

13

47860594

TUBE

Left Outer Cylinder Base End

1шт.

14

47860595

TUBE

Left Center Cylinder Rod End

1шт.

15

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

2шт.

16

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

17

87502038

CABLE TIE

Small

4шт.

18

384870A1

PLATE

Hose Clamp Cover

2шт.
