(90.108.AC[05]) - 16 ROW FRONT FOLD DRAW BAR HITCH DECALS

Запчасти Case IH 2150 (90.108.AC[05]) - 16 ROW FRONT FOLD DRAW BAR HITCH DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

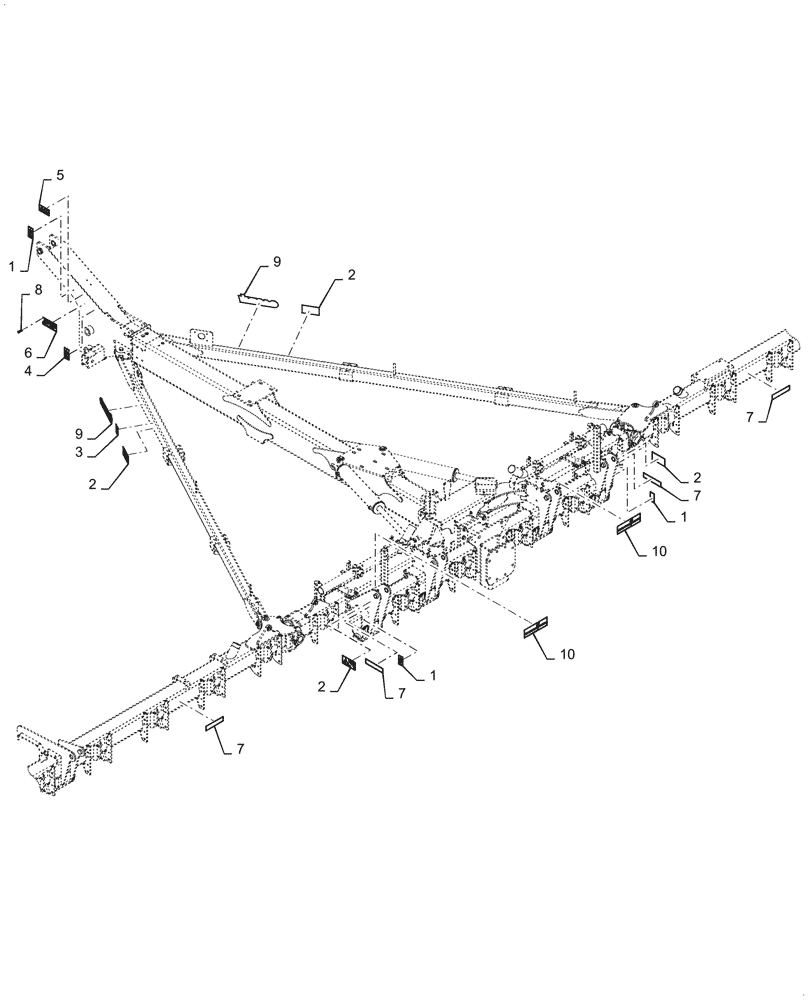

Схема запчастей Case IH 2150 - (90.108.AC[05]) - 16 ROW FRONT FOLD DRAW BAR HITCH DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
6
7
5
2
9
7
1
10
2
10
7
1
2
2
3
7
9
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47433201

DECAL

Crush Hazard

3шт.

2

47433192

DECAL

Pinch Hazard

4шт.

3

47433182

DECAL

Chemical Hazard

1шт.

4

47392435

DECAL

Tractor Speed Control

1шт.

5

47358801

CAUTION DECAL

ISO

1шт.

6

NS

NOT SERVICED

ID Plate Special Order Only

1шт.

7

86547782

REFLECTOR,YELLOW

4шт.

8

84316428

RIVET

4.8x17.5mm

4шт.

9

84395168

DECAL

CIH Logo

2шт.

10

47623656

DECAL

Agronomic

2шт.

Выбрано товаров: 10
