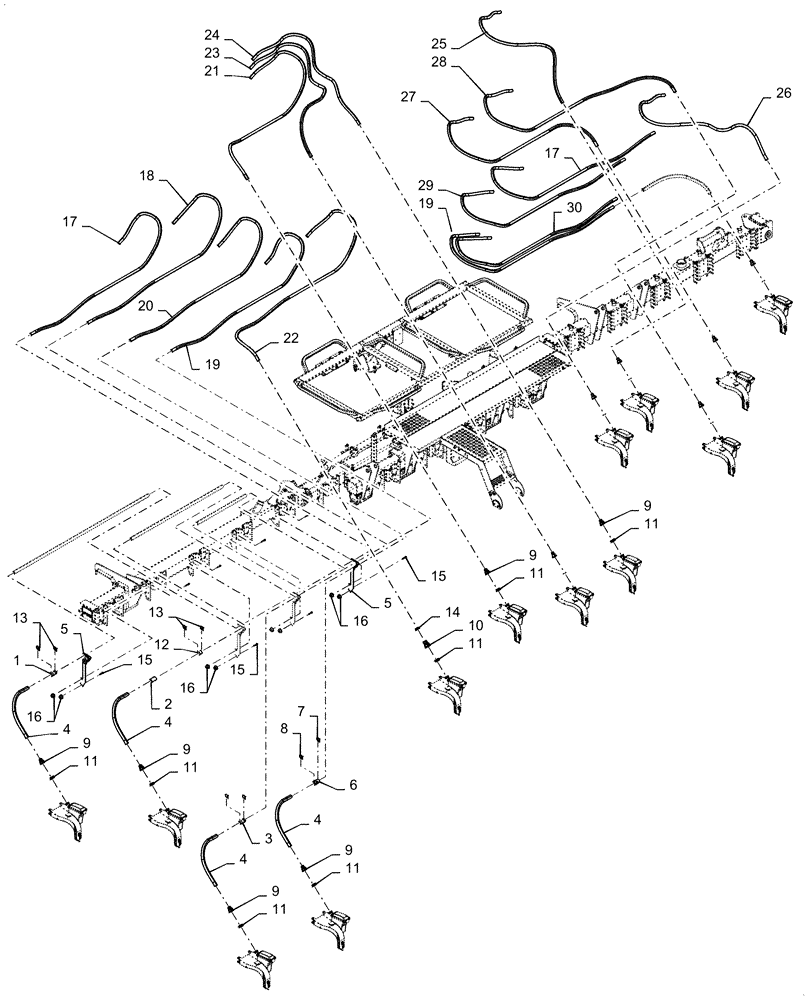

Запчасти Case IH 2150 (79.904.AF[01]) - BULK FILL SEED DELIVERY (79) - PLANTING

1

84519700

PIPE

Bulk Fill Seed 1.265" ID x 2388 mm

1шт.

2

84519703

PIPE

Bulk Fill Seed 1.265" ID x 1626 mm

1шт.

3

84523866

PIPE

Bulk Fill Seed 1.265" ID x 860 mm

1шт.

4

87483977

HOSE

Bulk 1.25" ID Cut To Length 950 mm

1шт.

5

47798290

SUPPORT

Seed Tube Red

4шт.

6

47762231

COUPLING

Seed Hose 1.25" x 1.5" OD

1шт.

7

47761466

CLAMP

1-1/2"

1шт.

8

47761519

CLAMP

1-3/4"

1шт.

9

84329267

COUPLING

1.25" Seed Tube

4шт.

10

84396735

QUICK MALE COUPLING

1" Seed Hose

1шт.

11

84372879

O-RING

Seed Hose Coupling

5шт.

12

47762230

COUPLING

Seed Hose 1.5" x 1.5"

1шт.

13

47761519

CLAMP

1-3/4"

2шт.

14

47591098

BOOT

Hose Coupling

1шт.

15

9804262

BOLT,M10 x 39.2mm, Cl 8.8

8шт.

16

9804278

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

17

87483976

HOSE

Bulk PVC 1" ID Cut To Length 3940 mm

2шт.

18

87483976

HOSE

Bulk PVC 1" ID Cut To Length 3956 mm

1шт.

19

87483976

HOSE

Bulk PVC 1" ID Cut To Length 4030 mm

2шт.

20

87483976

HOSE

Bulk PVC 1" ID Cut To Length 3990 mm

1шт.

21

87483976

HOSE

Bulk PVC 1" ID Cut To Length 4170 mm

1шт.

22

87483976

HOSE

Bulk PVC 1" ID Cut To Length 3560 mm

1шт.

23

87483976

HOSE

Bulk PVC 1" ID Cut To Length 3080 mm

1шт.

24

87483976

HOSE

Bulk PVC 1" ID Cut To Length 2700 mm

1шт.

25

87483976

HOSE

Bulk PVC 1" ID Cut To Length 2900 mm

1шт.

26

87483976

HOSE

Bulk PVC 1" ID Cut To Length 3200 mm

1шт.

27

87483976

HOSE

Bulk PVC 1" ID Cut To Length 3460 mm

1шт.

28

87483976

HOSE

Bulk PVC 1" ID Cut To Length 4800 mm

1шт.

29

87483976

HOSE

Bulk PVC 1" ID Cut To Length 3940 mm

1шт.

30

87483976

HOSE

Bulk PVC 1" ID Cut To Length 3830 mm

1шт.
