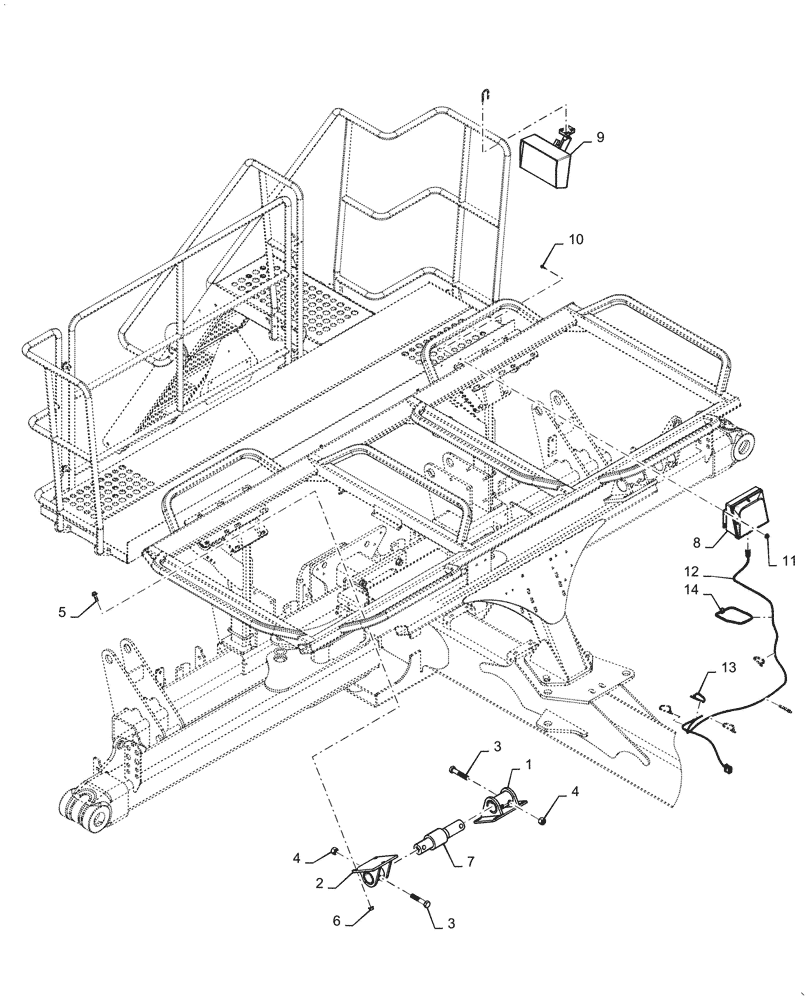

Запчасти Case IH 2150 (79.100.AC[05]) - BULK FILL WEIGH SCALE (79) - PLANTING

1

47504639

SUPPORT

Front Lower red

4шт.

2

47504633

SUPPORT

Rear Upper Red

4шт.

3

395528

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

8шт.

4

725637

NUT,M20 x 2.5, Cl 8

8шт.

5

9670288

BOLT,Hex, M12 x 35mm, Cl 8.8

12шт.

6

9804279

FLANGE NUT,Hex, M12, Cl 8

12шт.

7

84384726

SENSOR

Bulk Fill Load Cell

4шт.

8

84385999

CONTROLLER

Weigh Scales

1шт.

9

84416328

KIT

Scale Display

1шт.

10

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

11

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

12

47684493

WIRE HARNESS

Bulk Fill Scale

1шт.

13

87502038

CABLE TIE

Small

5шт.

14

87502039

CABLE TIE

1шт.
