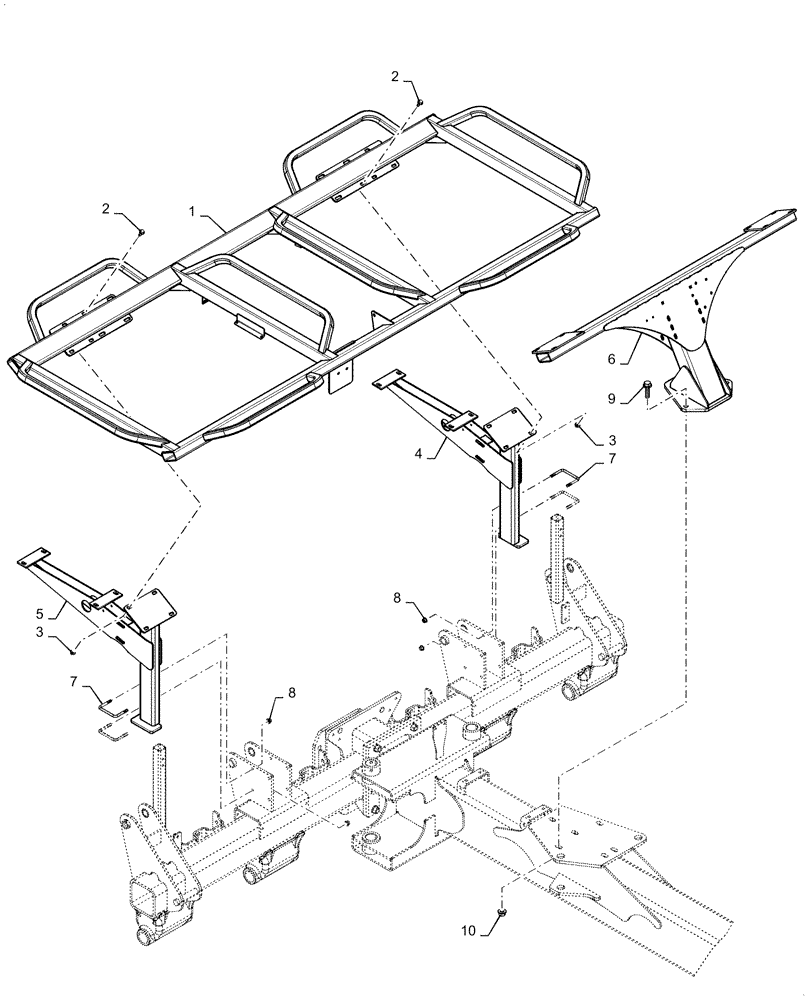

Запчасти Case IH 2150 (79.100.AC[01]) - BULK FILL TANK FRAME (79) - PLANTING

1

47721808

CRADLE

Bulk Fill Tank 50 Bushel Red

1шт.

2

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

16шт.

3

9804279

FLANGE NUT,Hex, M12, Cl 8

16шт.

4

73368108

SUPPORT

Left Rear Red

1шт.

5

73368106

SUPPORT

Right Rear Red

1шт.

6

73368103

SUPPORT

Front Red

1шт.

7

47817199

U-BOLT

M12 x 4"

4шт.

8

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

9

47506619

BOLT,M20 x 88.9mm OAL, Full Thd, Cl 10.9

3шт.

10

86512499

FLANGE NUT,M20 x 2.5, Cl 10

3шт.
