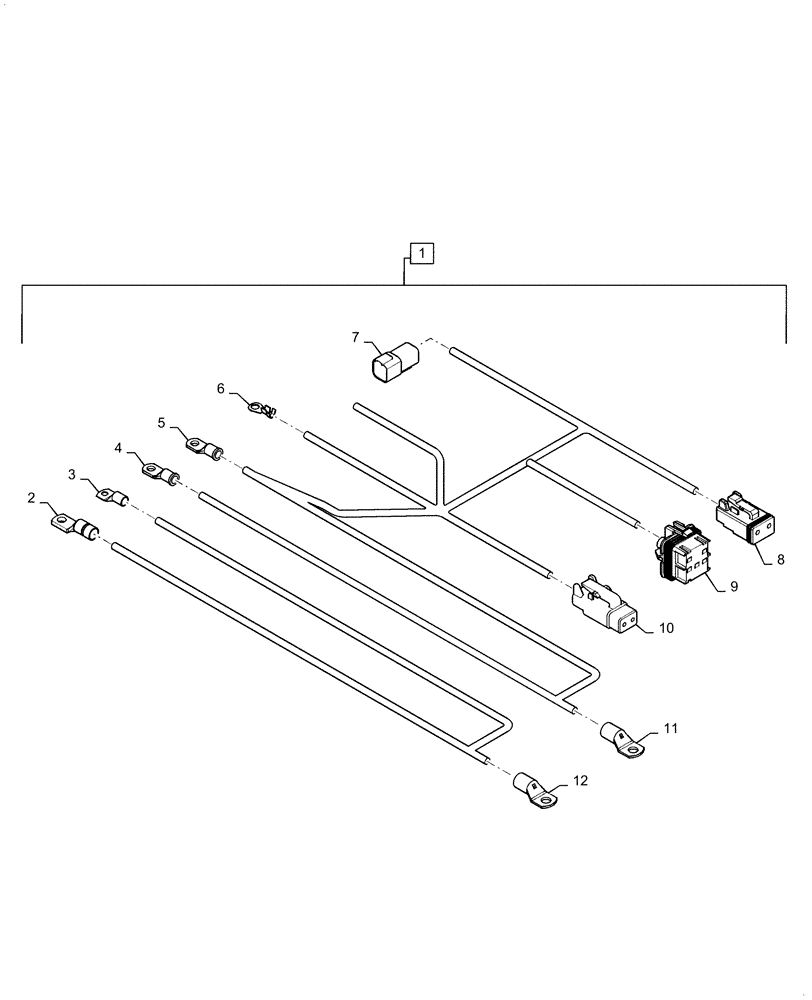

Запчасти Case IH 2150 (55.301.AA[03]) - HARNESS, WIRE, ALTERNATOR (55) - ELECTRICAL SYSTEMS

1

47917386

WIRE HARNESS

Alternator Incl 2 - 12

1шт.

2

84138833

TERMINAL

PDM Ground

1шт.

3

84309053

TERMINAL

Ring M6 Alternator Negative

1шт.

4

84207853

ELEC CONNECTOR,25.00 - 35.00mm

PDM Positive

1шт.

5

84207853

ELEC CONNECTOR,25.00 - 35.00mm

Alternator Positive

1шт.

6

84127304

TERMINAL

Alternator Voltage

1шт.

7

87695579

WIRE CONNECTOR

1шт.

7

87697956

TERMINAL

Male

1шт.

7

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

1шт.

7

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

1шт.

7

87695623

ELEC. TERMINAL PIN

Male

1шт.

7

87694147

WEDGE,Locking, Green

1шт.

7

84068583

PLUG,12 - 16 Ga, White

Seal

1шт.

8

87711966

PLUG

Alternator Valve

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

8

87712180

ELEC CONNECTOR

Wedge Lock

1шт.

8

84068583

PLUG,12 - 16 Ga, White

1шт.

9

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

Excitation Relay

1шт.

9

84179509

RELAY

12 Volt

1шт.

9

87705088

WEDGE

Lock

1шт.

10

87696093

ELEC CONNECTOR,Female, 2 Cavities

1шт.

10

87696547

ELEC CONNECTOR,Female, 2 Cavities

Terminal

2шт.

10

87696145

LOCKING TAB

Wedge

1шт.

10

84322203

CLIP

Mounthing

1шт.

11

47629692

TERMINAL

Ring Battery Positive

1шт.

12

47629692

TERMINAL

Ring Battery Negative

1шт.
