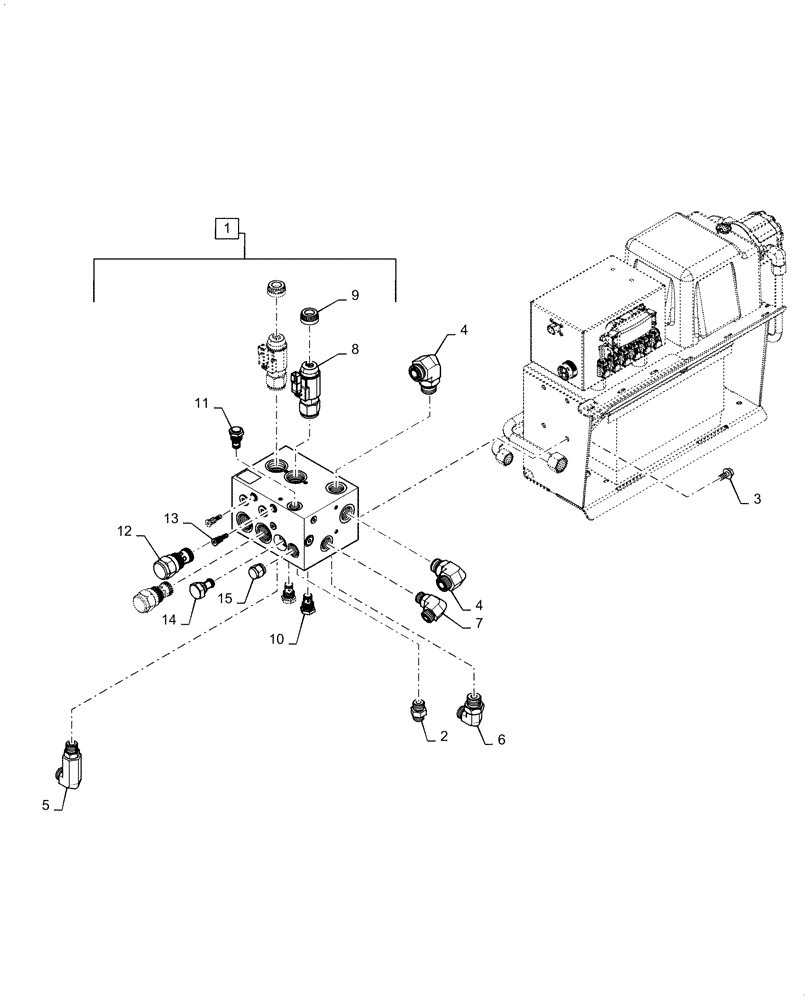

Запчасти Case IH 2150 (35.744.AF[01]) - ALTERNATOR HYDRAULIC VALVE (35) - HYDRAULIC SYSTEMS

1

47919038

VALVE

Dual Section Incl 8 - 15

1шт.

2

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

1шт.

3

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

4

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

2шт.

5

87522689

ELBOW

90 Deg x 5/8" Long

1шт.

6

9991973

ELBOW,1-14" ORFS x 1-1/16"-12 ORB

90 Deg x 3/4"

1шт.

7

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

5/8"

1шт.

8

84537688

VALVE

Solenoid Proportional Flow

2шт.

9

188106A1

NUT

Coil

2шт.

10

304371A1

HYDRAULIC VALVE

Coast Check

2шт.

11

304421A1

VALVE

Signal Flow

1шт.

12

47920430

VALVE

Flow Control 9 GPM

2шт.

13

1341811C1

SPRING-CHECK

Sense

2шт.

14

134687A1

PLUG

Relief

1шт.

15

87427764

PLUG

.625 Orb 7/8-14

1шт.
