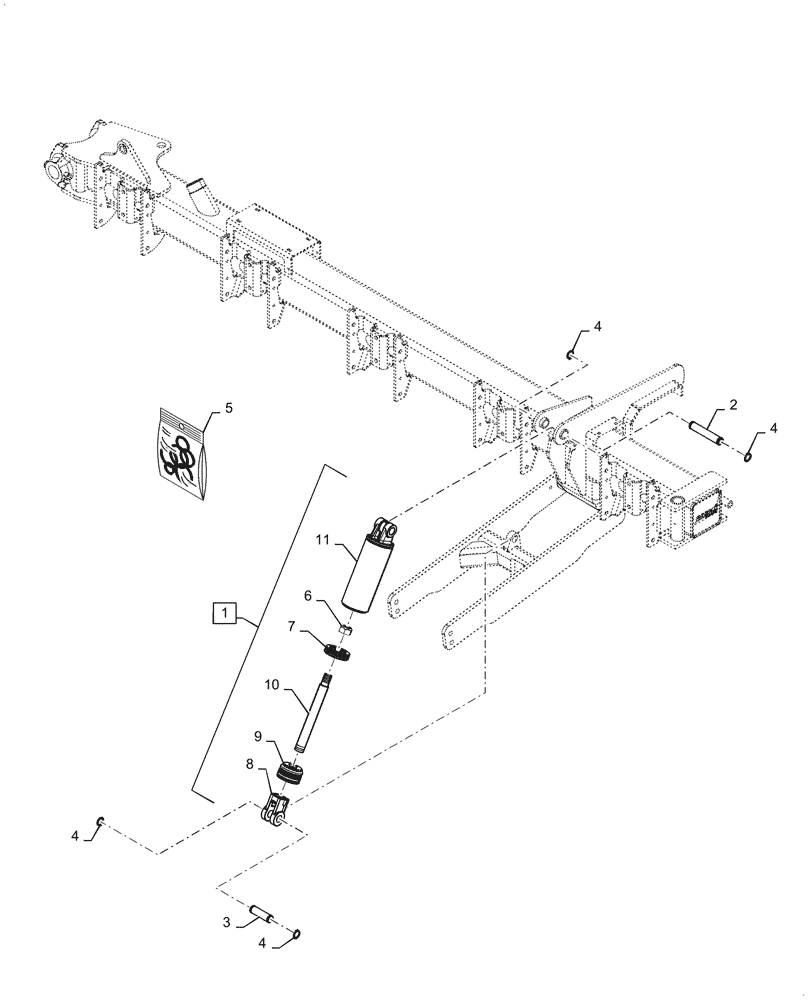

Запчасти Case IH 2150 (35.100.AB[02]) - WING WHEEL HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

47752399

HYDRAULIC CYLINDER

4.25 x 8.0 Incl 6 -11

2шт.

2

87578135

PIN

31.75 x 159.1 mm

2шт.

3

84194685

PIN

31.75 x 95 mm

2шт.

4

86625148

SNAP RING,#125, Ext

8шт.

5

47639366

SEAL KIT

Hydraulic Cylinder

1шт.

6

87023139

NUT

1 1/4"-12

1шт.

7

47929792

PISTON

4.25" Bore

1шт.

8

87409389

CLEVIS,1 -1/2" - 12

1шт.

9

47639348

HYDRAULIC CYLINDER

4.25-1.50

1шт.

10

47945049

ROD

Cylinder Bore

1шт.

11

47945048

CYLINDER END CAP

Base End

1шт.
